| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE,CUL,CQC and VDE etc. |
| رقم الموديل: | SCED |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.015-0.032 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| اللون: | لون أخضر | ملعب كورة قدم: | 5.08 ملم |
|---|---|---|---|
| أعمدة: | 2-22 عمود | الجهد االكهربى: | 300 فولت |
| تيار: | 18 أ | مادة العزل: | PA66 |
| صالة: | نحاس | فئة القابلية للاشتعال: | UL94-V0 |
| مقاومة العزل: | فوق DC500V ، 500MΩ | مقاومة التواصل: | أقل من 8 مΩ |
| تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
||

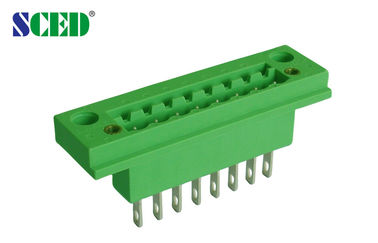

Male Header Plug In Terminal Block with Flange 5.08mm 18A Sockets Green PA66 2-22 Poles
Detailed product Description:
Header, Male Sockets, Through Panel Design, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

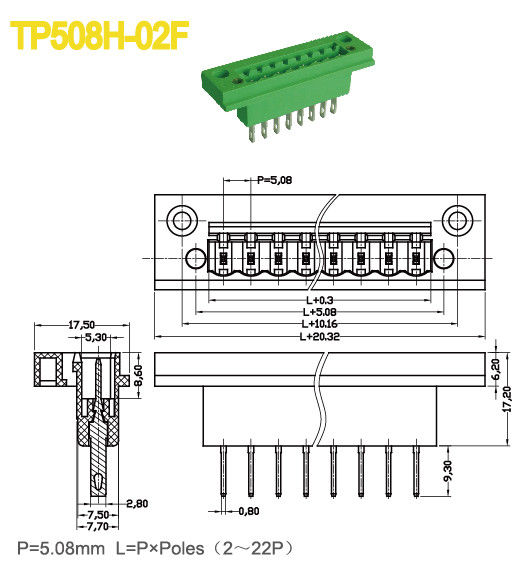

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 18 | ||
| Wire Range AWG | |||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| PinDimension mm | 1.0 x 1.0 | ||
Competitive Advantage:
