| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE |
| رقم الموديل: | TP508H-10V-D8 |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| اكتب: | نوع ثنائي الفينيل متعدد الكلور | اللون: | أخضر |
|---|---|---|---|
| العنصر: | سد العجز في نوع ، نوع الذكور | مواد: | PA66 |
| ملعب كورة قدم: | 5.08mm | أعمدة: | 2-22 القطبين |
| تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
||
5.08mm Female Connector 300V Plug In Type Terminal Block Green Connector
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

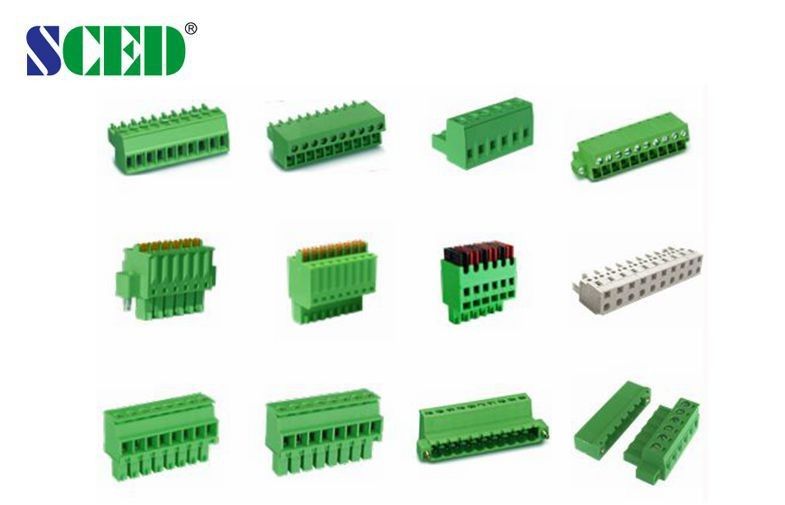

This male header match with female plugs’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/10 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Copper / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.5 | ||
| Pin Dimension mm | 0.4 x 1.1 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
