مكان المنشأ: | Guangdong, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | CE,UL,CUL,CQC and VDE etc. |
رقم الموديل: | TB825-01 |
الحد الأدنى لكمية: | 500 Piece/Pieces |
---|---|
الأسعار: | USD 0.04-0.08 per Pole |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 working days |
شروط الدفع: | L/C, T/T |
القدرة على العرض: | 1000000 Pole/Poles per Month |
أعمدة: | 2-32 القطب | ملعب كورة قدم: | 8.255mm |
---|---|---|---|
تيار: | 20A | الجهد االكهربى: | 300V |
بلاستيك: | PBT | برغي: | M3 |
فئة الالتهاب: | UL94 ، V-0 | شهادة: | UL |
تسليط الضوء: | electrical terminal block,barrier type terminal block,barrier type terminal block |

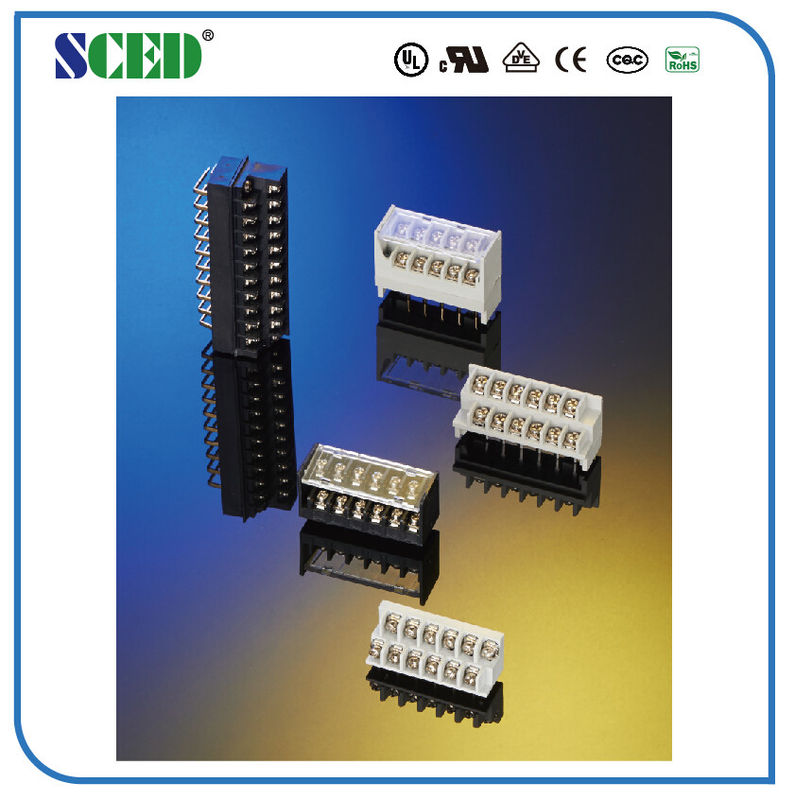

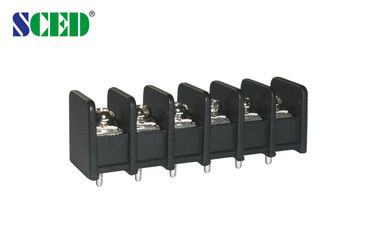

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
Detailed product Description:
Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/20 |
|
300/10 |
Wire Range AWG |
12-26 |
|
12-26 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
320 / 32 |
400 / 32 |
630 / 32 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
4 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Nickel Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.8 |
||
Stripping Length mm |
6-7 |
||
Screw / Torque / lbf.in |
M 3 / 5-7 |
Competitive Advantage:
Drawing photo
