| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE |
| رقم الموديل: | TJ508-08V |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.051-0.120 PER POLE |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 5.08 ملم | الجهد االكهربى: | 300 فولت |
|---|---|---|---|
| تيار: | 10 أ | مجموعة الأسلاك: | 12-26 أوغ |
| بلاستيك: | PA66 | برغي: | م 3 |
| عزم الدوران: | 4.4-5.3 رطل في البوصة | مقاومة التواصل: | أقل من 8 مΩ |
| مقاومة العزل: | فوق DC500V ، 500MΩ | فئة القابلية للاشتعال: | UL94 ، V-0 |
| تسليط الضوء: | screw type terminal block,screw connection terminal block,screw connection terminal block |
||

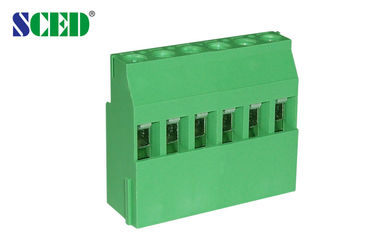

Euro Type PCB Screw Terminal Block 300V 15A Green 5.08mm Pitch Brass
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

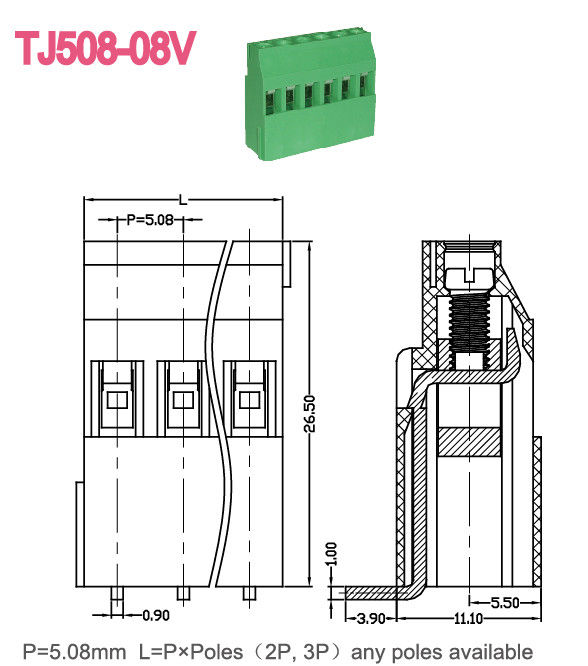

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.6 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
