| مكان المنشأ: | Guangdong,China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL,CUL,CQC and VDE etc. |
| رقم الموديل: | TD180-01-C |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 1.143-2.286 Per Pole |
| تفاصيل التغليف: | Packaging Details: Standard export packing carton, or according to customers demand. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 21 ملم | تيار: | 180 أ |
|---|---|---|---|
| الجهد االكهربى: | 300 فولت | برغي: | م 6 |
| عزم الدوران: | 20-22 رطل في البوصة | بلاستيك: | PBT |
| مادة العزل: | UL94-V0 | طول التجريد: | 14-18 ملم |
| مجموعة الأسلاك: | 20-1 / 0 AWG | مجلس التوصيل: | نحاس |
| تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |
||

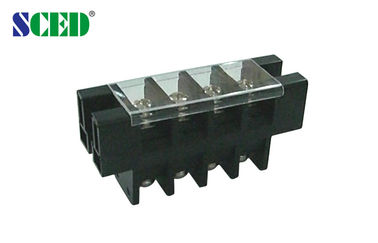

180A Panel Mount Terminal Block 21mm Perforation Feed Through with Plastic Cover
Detailed product Description:
Pitch 21.0mm, 600V 180A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors
■ Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

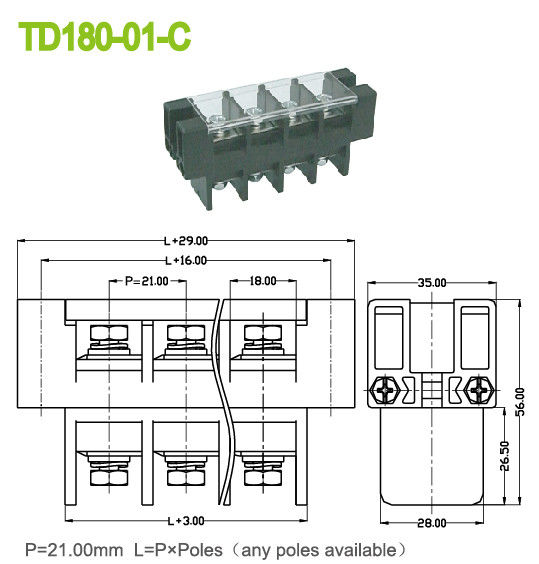

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 180 | 300 / 180 | 300 / 10 |
| Wire Range AWG | 20-1/0 | 20-1/0 | 4-20 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 180 | 800 / 180 | 1000 / 180 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 8 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 14-18 | ||
| Screw / Torque / lbf.in | M6 / 20-22 | ||
Competitive Advantage:
