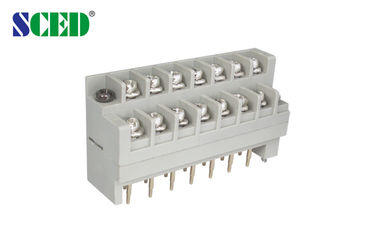

Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A

Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A

    • Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
    • Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
  • Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A

    تفاصيل المنتج:

    Place of Origin: Guangdong China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: UL,CUL,CQC,VDE,CE etc.
    Model Number: TB762-10

    شروط الدفع والشحن:

    Minimum Order Quantity: 500 Piece/Pieces
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Color: Grey Pitch: 7.62mm
    Voltage: 300V Current: 15A
    Plastic: PBT Screw: Steel
    Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less than 8mΩ
    Poles: 6-21 poles Rated Surge Voltage: No abnormal within 1 minute



    Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A



    Detailed product Description:



    Pitch 7.62mm, 300V 15A, 4*6P-20*21P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    □Single Level;  ■Double levels;  □Triple levels

    Standard color: Grey. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/15



    300/10

    Wire Range                       AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A



    Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
