مكان المنشأ: | Guangdong China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | CE,UL,CUL,CQC,VDE etc. |
رقم الموديل: | TJ254-02 |
الحد الأدنى لكمية: | 500 Piece/Pieces |
---|---|
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 days |
شروط الدفع: | L/C, T/T |
القدرة على العرض: | 1000000 Pole/Poles per Month |
Pitch: | 2.54mm | Color: | Green |
---|---|---|---|
Current: | 6A | Voltage: | 125V |
Screw: | Steel | Plastic: | PA66 |
Contact Resistance: | Less than 8mΩ | Rated Surge Voltage: | No abnormal within 1 minute |
Inflammability Class: | UL94, V-0 | Contact numbers: | 2-24 Poles |
تسليط الضوء: | pcb screw terminal blocks,pcb mount terminal block,pcb mount terminal block |

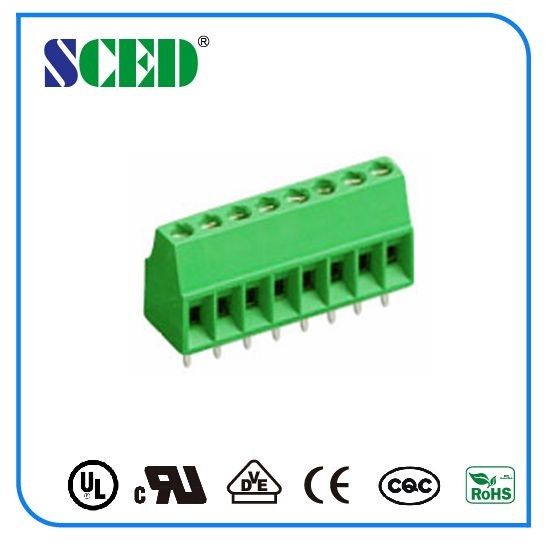

12 Poles Electronic Green pcb terminal block connector PA66 Pitch 2.54mm
Detailed product Description:
Pitch 2.54mm, 1250V 6A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■ Right angle wire inlet
■ Double decks
Standard color: Green.
Other colors also available.
Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply
2. Electric Lighting, Industry Control, Automation, Rail Transportation
3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
125 / 6 |
|
|
Wire Range AWG |
16-30 |
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
63 / 6 |
160 / 6 |
320 / 6 |
Rated Surge Voltage KV |
1.5 |
1.5 |
1.5 |
Rated Connecting Capacity mm2 |
0.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.1 |
||
Stripping Length mm |
4-5 |
||
Screw / Torque / lbf.in |
M1.6 / 1.0-1.3 |
Competitive Advantage:
1. 10 main series and more than 1000 models for selection
2. Stable good quality
3. Flexible to design the exact part per customers' demand
4. Resonable price
5. Good servide.
