مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE, CQC |
رقم الموديل: | TR60-01-BM0-N2 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
نوع: | panle جبل نوع | ملعب كورة قدم: | 19.00mm |
---|---|---|---|
أعمدة: | أي أعمدة | مواد: | PBT |
اللون: | أسود | برغي: | M6 |
تسليط الضوء: | pcb wire terminals,wiring terminal blocks,wiring terminal blocks |

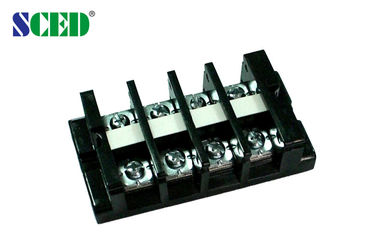

19.00mm Panel Mount High Current Terminal Block pluggable 600V 60A
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 60 | 600 / 60 | |
Wire Range AWG | 4-20 | 4-20 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /60 | 1000 / 60 | 1000 / 60 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 14 | ||
Material | |||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 12-15 | ||
Screw Torque mm | M6 / 18-22 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
