مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TP381H-01 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
سلك مدخل: | مدخل السلك العمودي | تطبيقات: | الكلور ، محول التردد ، الخ |
---|---|---|---|
اللون: | أخضر | عدد جهات الاتصال: | 2-24 دبابيس |
ملعب كورة قدم: | 3.81mm | تيار مصنّف: | 8A |
جهد فلطيّ مصنّف: | 300V | نوع: | ذكر كتل طرفية للتوصيل |
تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
Male Type PCB Plug In Terminal Blcok PA66 Green Connector 3.50 3.81 5.08 7.62mm
Quick Detail
1. Pluggable terminal blocks is widely used in servo drive, security commucation, power industry, energy conservation and etc.
1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm, 5.08mm,7.62mm
2. The pluggable system work toghter by plug and header.
3. The main characteristics is they can be achieved power on or off freely.
4. The plug can be plugged in and out very conveniently.
5. Material: Plastic housing is PA66(UL94 V-0), operating temperature: -40℃~+105℃ Clamp cage and header terminal using brass, spring clamp with phosphor bronze, screw using high quality steel.

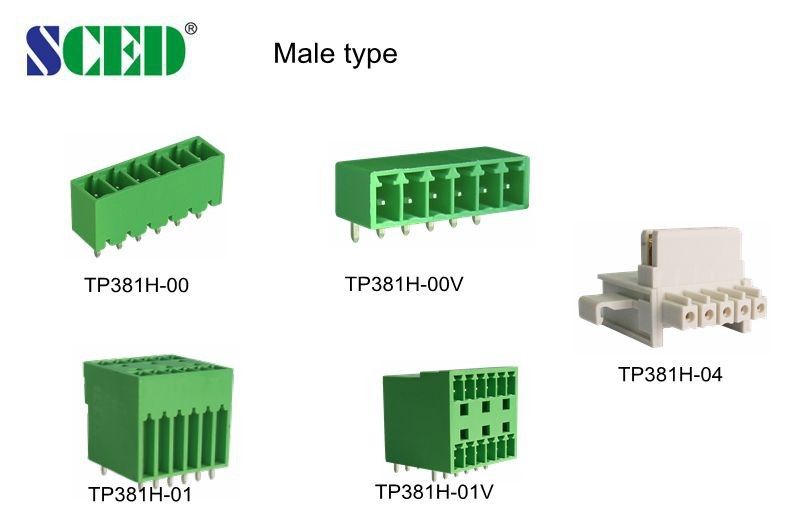

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03,
TP381P-04, please see the photos show before
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 8 |
|
|
Wire Range AWG |
|
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Terminal / Plating |
Brass / Tin Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.2 |
||
PinDimension mm |
0.8 x 0.8 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

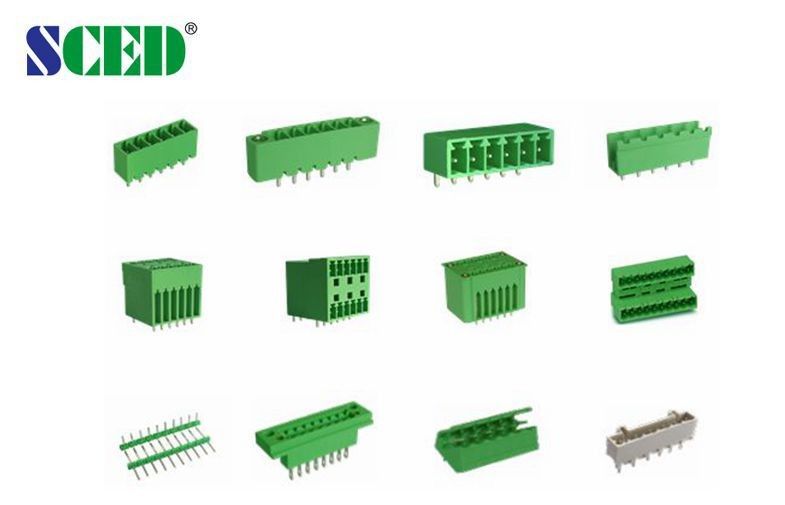

Drawing Photo
