PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm

PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm

  • PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
  • PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
  • PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
  • PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
تفاصيل المنتج:
مكان المنشأ: Shenzhen, China
اسم العلامة التجارية: SCED
إصدار الشهادات: UL, CE
رقم الموديل: TJ508-07
شروط الدفع والشحن:
الحد الأدنى لكمية: 500
الأسعار: Get latest price
تفاصيل التغليف: Standard Export Carton
وقت التسليم: 7-20 working days
شروط الدفع: T/T
القدرة على العرض: 1KK poles each monthly
اتصل
مفصلة وصف المنتج
تطبيقات: ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك اللون: أخضر
عدد جهات الاتصال: 2P-24P ملعب كورة قدم: 5.08mm
تيار مصنّف: 10A جهد فلطيّ مصنّف: 300V
تسليط الضوء:

pcb screw terminal blocks,pcb terminal block connectors

,

pcb terminal block connectors





PCB Terminal Block PA66 PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm



Quick Details:



1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.



2. It is consisted of plastic housing, clamp cage, terminal and screw.



3. It can be stacked to be different poles via 2P and 3P,



4. Wire inlet Direction: 45 90 180degree



4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel



Data





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                                AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current               V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                    KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.4

Stripping Length                      mm

6-7

Screw / Torque                      / lbf.in

M3 / 4.4-5.3







Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm 0

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

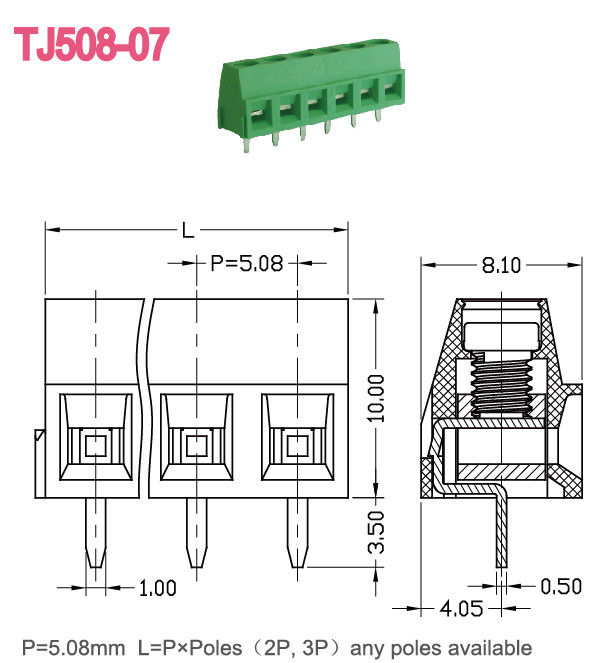

Drawing photo:

PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm 1

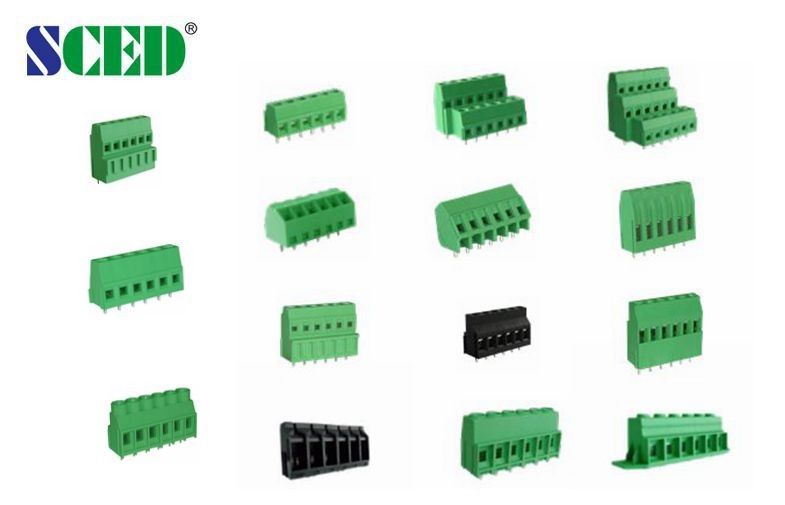

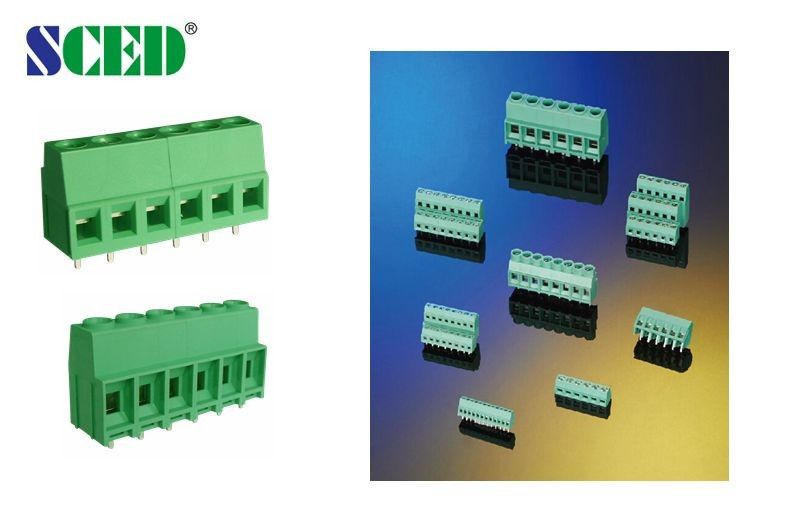

Photo of more products



PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm 2



Tag:

PCB mount terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
