| مكان المنشأ: | Guangdong, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL,CUL,CQC and VDE etc. |
| رقم الموديل: | TJ952-01 |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.114-0.228 PER POLE |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| مادة العزل: | PA66 | فئة القابلية للاشتعال: | UL94-V0 |
|---|---|---|---|
| برغي: | م 4 | عزم الدوران: | 10.6-13 رطل في البوصة |
| قفص المشبك: | نحاس | أعمدة: | 2-16 عمود |
| ملعب كورة قدم: | 10.16 ملم | تيار: | 57 أ |
| الجهد االكهربى: | 300 فولت | مجموعة الأسلاك: | 6-22 أوغ |
| تسليط الضوء: | screw type terminal block,screw terminal block connector,screw terminal block connector |
||

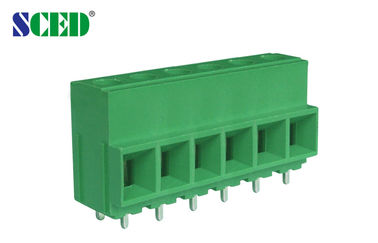

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
Detailed product Description:
Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet:■Right angle wire inlet
Decks:■Single Deck; □Double decks; □Triple decks
Standard color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Euro terminal blocks are widely used in industry and automatic control, power, PCB, frequency conversion, electronics and so on.

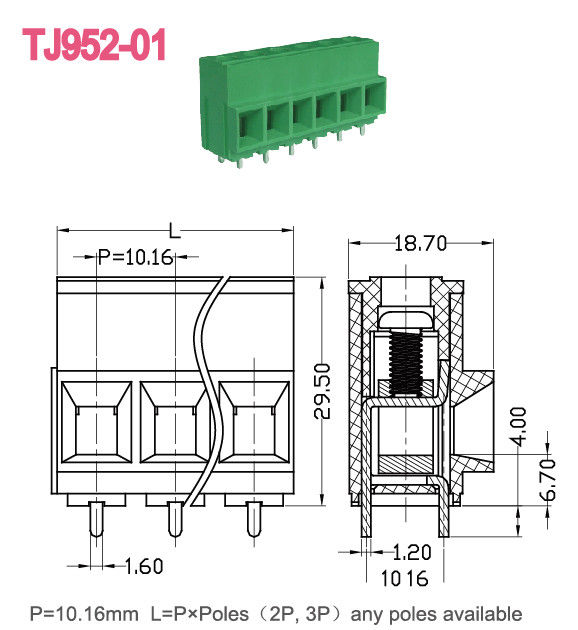

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/57 | 300/57 | |
| Wire Range AWG | 6-22 | 6-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 690 / 57 | 1000 / 57 | 1000 / 57 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.4 | ||
| Stripping Length mm | 9-11 | ||
| Screw / Torque / lbf.in | M4 / 10.6-13 | ||
Competitive Advantage:
