| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE, CUL, CQC and VDE etc. |
| رقم الموديل: | TP381P-20F |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.05-0.1 PER PCS |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| اللون: | لون أخضر | نوع: | الجزء الأنثوي |
|---|---|---|---|
| ملعب كورة قدم: | 3.5 ملم | الجهد االكهربى: | 300 فولت |
| تيار: | 8 أ | مجموعة الأسلاك: | 16-30 أوغ |
| عزم الدوران اللولبي: | 2-2.2 رطل في البوصة | برغي: | م 2 |
| مادة العزل: | PA66 | قفص المشبك: | نحاس |
| تسليط الضوء: | electrical terminal blocks,plug in terminal block,plug in terminal block |
||

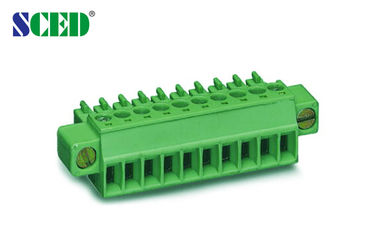

Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green
Detailed product Description:
Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
LEVELS: ■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our products can be used in Server Site, Security, Communication, Power Industrial, Energy Conservation, PCB, Electronics etc.

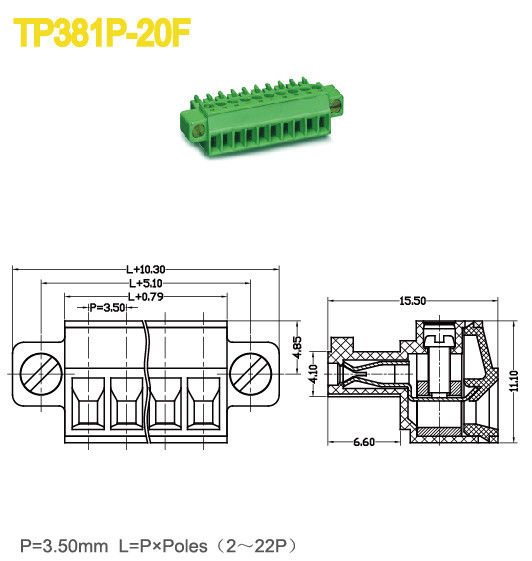

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| Wire Range AWG | 16-30 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Contactor / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M2 / 2-2.2 | ||
Competitive Advantage:
