مكان المنشأ: | Guangdong, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | CE,UL, CUL, CQC and VDE etc. |
رقم الموديل: | AO-08/4J |
الحد الأدنى لكمية: | 1000 Piece/Pieces |
---|---|
الأسعار: | USD 0.039-0.078 PER PC |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 Working Days |
شروط الدفع: | T/T, L/C |
القدرة على العرض: | 1000000 Pole/Poles per Month |
التصنيف الحالي: | 40 أ | مركز الفضاء: | 5.0 * 7.0 ملم |
---|---|---|---|
برغي: | م 3 | تصفيح المسمار: | النيكل مطلي |
مادة المسمار: | صلب | الجسم الطرفي: | نحاس |
عزم الدوران اللولبي: | 7 رطل في | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
مقاومة التواصل: | أقل من 8 مΩ | مقاومة العزل: | فوق DC500V ، 500MΩ |
تسليط الضوء: | wire terminal block connectors,din rail mounting accessories,din rail mounting accessories |

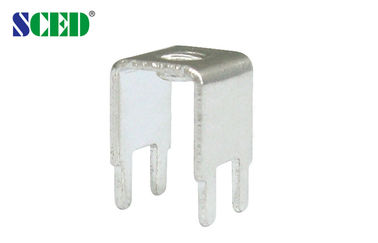

PCB Terminal Block Accessories Brass Electrical Components 5.0mm Center Space
Detailed product Description:
Terminal Accessories, PCB terminal, Electrical components
Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions.
The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.
Competitive Advantage:
Applications:
PCB, Military, Frequency Converters, Medical Equipment, Server Site, Elevator, Switch, Electric Power, Security, Power Supply, Electric Lighting, Industry Control,Automation,Communication, Rail Transportation and so on.
