| مكان المنشأ: | Guangdong, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE, UL, CUL, CQC and VDE etc. |
| رقم الموديل: | TJ508-02 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.09-0.15 PER POLE |
| تفاصيل التغليف: | Standard export packing carton, or according to customers demand. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| المستويات: | مستويات ثلاثية | اللون: | لون أخضر |
|---|---|---|---|
| ملعب كورة قدم: | 5.08 ملم | مقاومة العزل: | فوق DC500V ، 500MΩ |
| تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة | برغي: | م 3 |
| عزم الدوران: | 4.4-5.3 رطل في البوصة | بلاستيك: | PA66 |
| فئة القابلية للاشتعال: | UL94-V0 | تيار: | 10 أ |
| تسليط الضوء: | screw type terminal block,screw terminal block connector,screw terminal block connector |
||

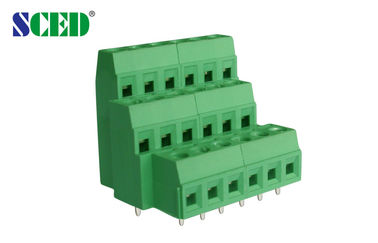

Triple Levels PCB Screw Terminal Block Euro Type Raising Series 5.08mm Pitch Brass
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks:□Single Deck; □Double decks; ■Triple decks
Standard color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our products can be used in lots of fields and industries, such as: Medical Equipment, Military, Security, Power Supply, Communication, Industrial Control, Automation, PCB, Frequency Converters etc.

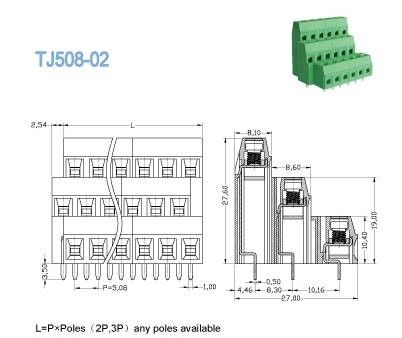

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 10 | 300 / 10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
