| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL,CUL,CQC and VDE etc. |
| رقم الموديل: | TP508P-05F |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.079-0.158 PER POLE |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| أعمدة: | 2-22 عمود | برغي: | M2.5 |
|---|---|---|---|
| عزم الدوران: | 3-3.5 رطل في البوصة | طول التجريد: | 10 ملم |
| مادة العزل: | PA66 | تيار: | 18 أ |
| مجموعة الأسلاك: | 12-30 أوغ | الجهد االكهربى: | 300 فولت |
| ملعب كورة قدم: | 5.08 ملم | اللون: | لون أخضر |
| تسليط الضوء: | pluggable terminal block connector,electrical terminal blocks,electrical terminal blocks |
||
Female Pluggable Terminal Block with Mounting Ears 5.08mm 300V 18A Green Color
Detailed product Description:
Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-00F, TP508H-00VF, TP508H-02F, TP508H-06F, TP508H-06VF
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

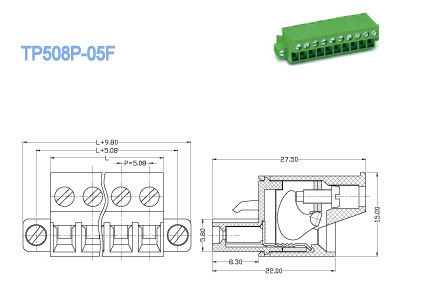

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 630 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Nickel Plated | ||
| Contactor / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 10 | ||
| Screw / Torque / lbf.in | M2.5 / 3-3.5 | ||
Competitive Advantage:
Applications:
Communication, Security, Power Supply, PCB, Frequency Converters, Automation, Server Site, Switch and Industrial Control and so on.
