مكان المنشأ: | China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | CE,UL, CUL, CQC and VDE etc. |
رقم الموديل: | TB1300-03-C |
الحد الأدنى لكمية: | 500 Piece/Pieces |
---|---|
الأسعار: | USD 0.076-0.142 PER POLE |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 Working Days |
شروط الدفع: | L/C, T/T |
القدرة على العرض: | 1000000 Pole/Poles per Month |
تيار: | 40 أ | ملعب كورة قدم: | 13 ملم |
---|---|---|---|
أعمدة: | 2-18 عمودًا | الجهد االكهربى: | 600 فولت |
مجموعة الأسلاك: | 20-8 أوغ | برغي: | م 4 |
مادة العزل: | PBT | اللون: | أسود |
تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة | مقاومة التواصل: | أقل من 8 مΩ |
تسليط الضوء: | power distribution terminal block,electric terminal block,electric terminal block |

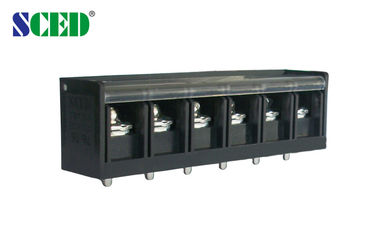

40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4
Detailed product Description:
Pitch 13.00mm, 600V 40A, 2-18P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

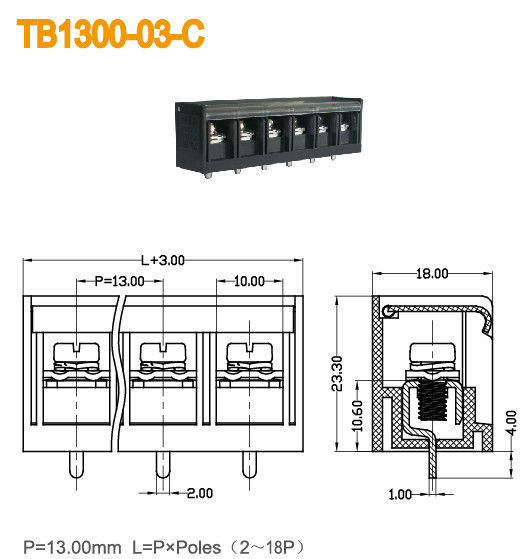

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600/40 | 600/40 | 600/5 |
Wire Range AWG | 8-20 | 8-20 | 8-20 |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 40 | 1000 / 40 | 1000 / 40 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 4 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ2.5 | ||
Stripping Length mm | 10-11 | ||
Screw / Torque / lbf.in | M 4 / 10.6-13 |
Applications:
1.Power Supply, Automation, Industrial Control
2.Security, Military, Medical Equipment
3.Server Site, Frequency Converters, Switch
4.Communication, Rail Transportation, Elevators and so on.
Competitive Advantage:
