600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks

600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks

  • 600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks
  • 600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks
600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks
تفاصيل المنتج:
مكان المنشأ: Shenzhen, China
اسم العلامة التجارية: SCED
إصدار الشهادات: UL, CE
رقم الموديل: TR60-01-FaM0
شروط الدفع والشحن:
الحد الأدنى لكمية: 500
الأسعار: Get latest price
تفاصيل التغليف: Standard Export Carton
وقت التسليم: 7-20 working days
شروط الدفع: T/T
القدرة على العرض: 1KK poles each monthly
اتصل
مفصلة وصف المنتج
Pitch: 14.00mm Number Of Contacts: Any Poles Available
Rated Voltage: 600V Rated Current: 60A
Color: Black Wire range: 4-20 AWG
Key words: Male Pin Header Application: Industrial Control Power supply etc.
تسليط الضوء:

rail mount terminal block,grounding terminal block

,

grounding terminal block

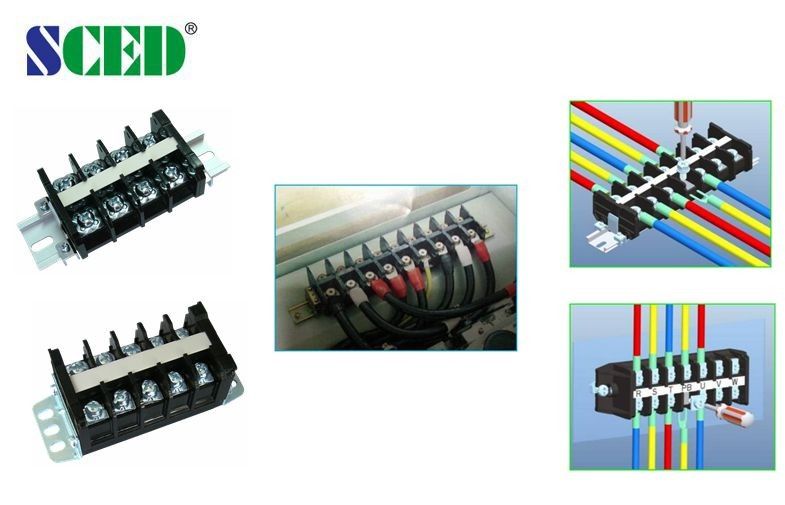

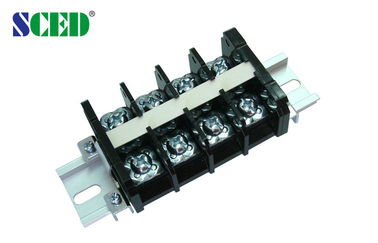

600V 60A Din Rail Mounted Terminal Block 14.00mm Electrical Screw Terminal Blocks




High Current Terminal connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors


Parameter



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                               AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 /60

1000 / 60

1000 / 60

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

14

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                   mm

12-15

Screw Torque                       mm

M6 / 18-22


How to order:
600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks 0


Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Drawing Photo



600V 60A Din Rail Mounted Terminal Blocks , 14.00mm Electrical Screw Terminal Blocks 1
