| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE |

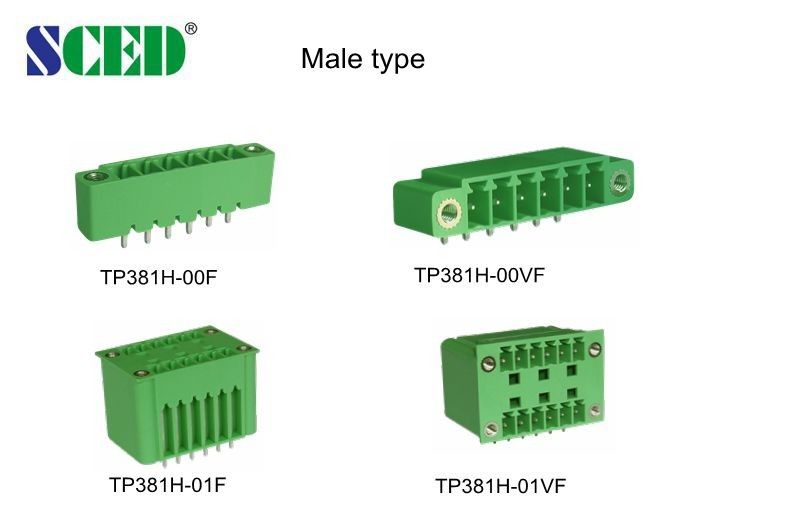

| رقم الموديل: | TP381H-00VF |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Get latest price |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| ملعب كورة قدم: | 3.81mm | اللون: | أخضر |
|---|---|---|---|
| أعمدة: | 2-20 ص | مواد: | PA66 |
| طرفية: | نحاس | كلمات الأساسية: | محطة الذكور للتوصيل |
| تسليط الضوء: | electrical terminal blocks,plug in terminal block,plug in terminal block |
||

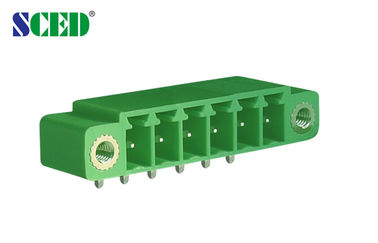

300V 8A Male Pluggable Terminal Block Vertical Wire Inlet Brass Terminal Pitch 3.81mm 2P-20P
Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
Parameter:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.2 | ||
| Pin Dimension mm |
0.8 x 0.8 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
