| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE |
| رقم الموديل: | TP381P-08 |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| مجموعة الأسلاك: | 20-22 | معدل الاتصال: | 0.5 |
|---|---|---|---|
| ارتفاع الجهد الكهربي: | 6KV | Imflammability: | UL94 ، V-0 |
| مواد الإسكان: | PA66 | ملعب كورة قدم: | 3.81mm |
| تيار: | 5A | الجهد االكهربى: | 300V |
| تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
||

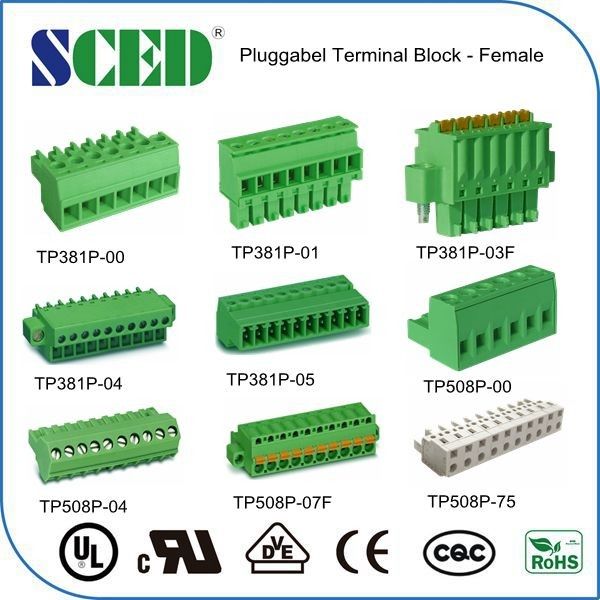

2-24 Number Of Contact Plug in Terminal Block 3.81mm Spring Clamp Electric Terminal
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 5 |
|
|
|
Wire Range AWG |
20-22 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
400/6 |
400/6 |
400/6 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
0.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
|
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
|
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
