مكان المنشأ: | China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TB762-12 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get the latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك | اللون: | أسود |
---|---|---|---|
تيار مصنّف: | 15A | جهد فلطيّ مصنّف: | 300V |
اكتب: | حاجز محطة كتلة | مجموعة الأسلاك: | 14-22 AWG |
تسليط الضوء: | electrical terminal block,pcb terminal blocks,pcb terminal blocks |

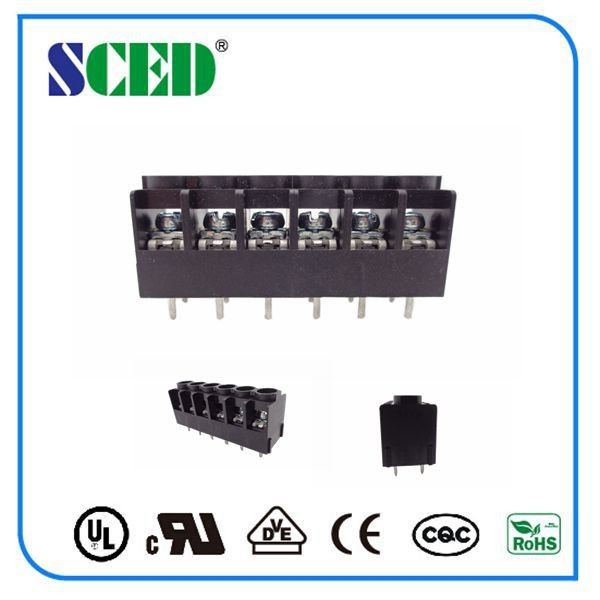

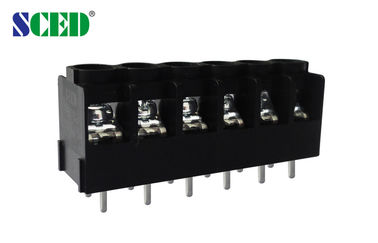

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Small Industrial Project
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
Wire Range AWG |
14-22 |
|
14-22 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
400 / 24 |
630 / 17 |
630 / 24 |
Rated Surge Voltage KV |
6 |
6 |
4 |
Rated Connecting Capacity mm2 |
2..5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
Terminal / Plating |
Brass /Tin Plated |
||
Screw / Plating |
Steel / Zinc plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.5 |
||
Stripping Length mm |
8-9 |
||
Screw / Torque / lbf.in |
M 3 / 5-7 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
