| مكان المنشأ: | Guangdong, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL |
| رقم الموديل: | TJ952-00 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.051-0.12 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 9.52 ملم | اللون: | لون أخضر |
|---|---|---|---|
| بلاستيك: | PA66 | فئة القابلية للاشتعال: | UL94-V0 |
| برغي: | م 3 | طول التجريد: | 7-8 ملم |
| صالة: | نحاس | مقاومة التواصل: | أقل من 8 مΩ |
| تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة | المقاومة nsulation: | فوق DC500V ، 500MΩ |
| تسليط الضوء: | screw type terminal block,screw terminal block connector,screw terminal block connector |
||

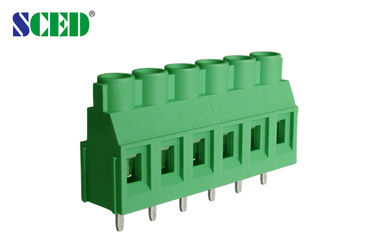

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3
Detailed product Description:
Pitch 9.52mm, 300V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series
Wire Inlet: ■Right angle wire inlet
Decks: ■Single Deck
Standard color: Green.
Other colors can be also available, please refer to below How to Order and select the color you want.
How to order:

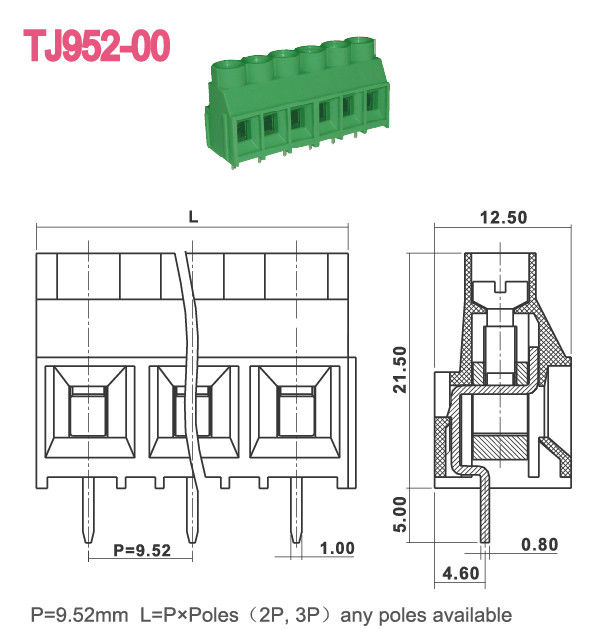

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 30 | 300 / 30 | |
| Wire Range AWG | 10-30 | 10-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 30 | 1000 / 30 | 1000 / 30 |
| Rated Surge Voltage KV | 6 | 8 | 6 |
| Rated Connecting Capacity mm2 | 4.0 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Applications:
1. Automation, PCB, Medical Equipment
2. Industrial Control, Security, Power Supply
3. Serve Site, Switch, Rail Transportation
4. Communication, Electric Lighting, Frequency Converters
5. Elevator and CCTV and so on.
Competitive Advantage:
