تفاصيل المنتج:
شروط الدفع والشحن:
|
| اللون: | أسود | ملعب كورة قدم: | 10 ملم |
|---|---|---|---|
| أعمدة: | 2-20 عمودًا | الجهد االكهربى: | 300 فولت |
| تيار: | 15 أ | برغي: | م 4 |
| طول التجريد: | 9-10 ملم | مادة العزل: | PBT |
| تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة | مقاومة العزل: | فوق DC500V ، 500MΩ |
| تسليط الضوء: | electrical terminal block,pcb terminal blocks,pcb terminal blocks |
||
10mm Pitch Power Barrier Terminal Block 2-20 Poles 15A Brass 16-24 AWG
Detailed product Description:
Pitch 10.00mm, 300V 20A, 2P-20P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Black.
Other colors can be also available, please refer to below How to Order and select the color you want.
How to order:

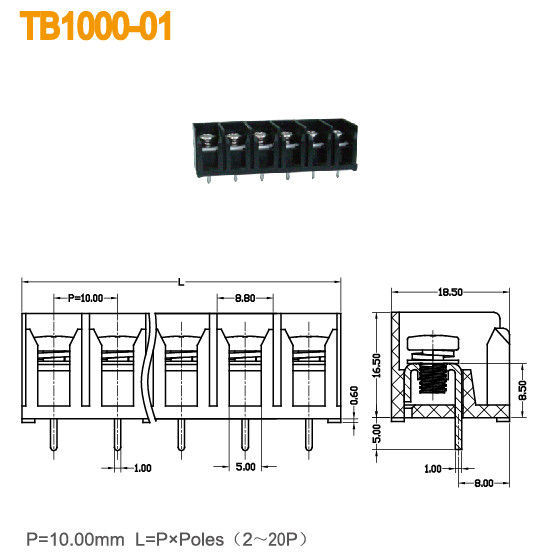

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 15 | 300 / 10 | |
| Wire Range AWG | 16-24 | 16-24 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 17.5 | 630 / 17.5 | 8000 / 17.5 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.8 | ||
| Stripping Length mm | 9-10 | ||
| Screw / Torque / lbf.in | M 4 / 10-12 | ||
Competitive Advantage:
