| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL |
| رقم الموديل: | TP508H-06VF |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.025-0.05 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة | مقاومة العزل: | فوق DC500V ، 500MΩ |
|---|---|---|---|
| المستويات: | مستويات مزدوجة | اللون: | لون أخضر |
| ملعب كورة قدم: | 5.08 ملم | نوع: | أجزاء من الذكور |
| مادة العزل: | PA66 | قفص المشبك: | نحاس |
| فئة القابلية للاشتعال: | UL94-V0 | أعمدة: | 2-22 عمود |
| تسليط الضوء: | electrical terminal blocks,plug in terminal block,plug in terminal block |
||

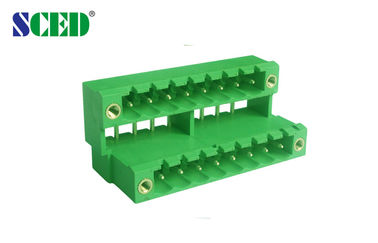

Male Sockets Pluggable Terminal Blocks Headers 2*2-2*22 Poles 5.08mm Pitch
Detailed product Description:
Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2*2P-22*2P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: □Single Level; ■Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F
Standard color: Green.
Other colors can be also available as required, please refer to below How to Order and select the color you want.
How to order:

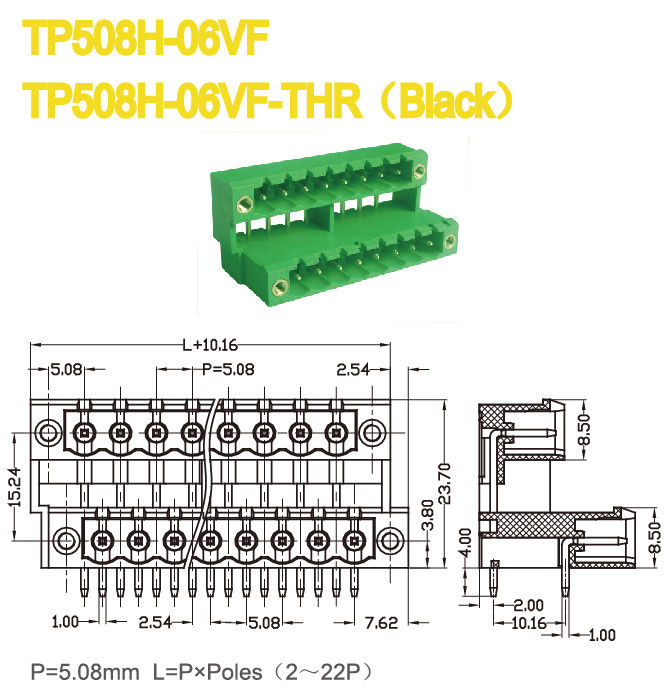

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
Applications:
1. PCB, Frequency Converters, Server Site, Switch
2. Power Supply, Electric Lighting, Industry Control, Automation
3. Rail Transportation, Communication, Electric Power, Security
4. Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
