| مكان المنشأ: | Guangdong China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL |
| رقم الموديل: | TP381P-02 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.048-0.096 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 3.81 ملم | نوع: | مآخذ أنثى |
|---|---|---|---|
| اللون: | لون أخضر | أعمدة: | 2-22 عمود |
| تيار: | 8 أ | الجهد االكهربى: | 300 فولت |
| مجموعة الأسلاك: | 16-30 أوغ | برغي: | م 2 |
| طول التجريد: | 7 ملم | قفص المشبك: | نحاس |
| تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
||

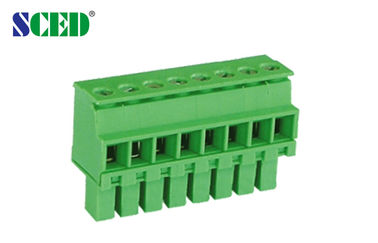

2-22 Poles Plug In Terminal Block M2 Screw Female Sockets Brass Clamp Cage
Detailed product Description:
Plug, Female Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
Standard Color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.
This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05.
How to order:
Applications:
PCB, Medical Equipment, Frequency Converters, Military, Server Site, Elevator, Switch, Communication, Power Supply, Automation, Electric Lighting, Industry Control, Rail Transportation and so on.

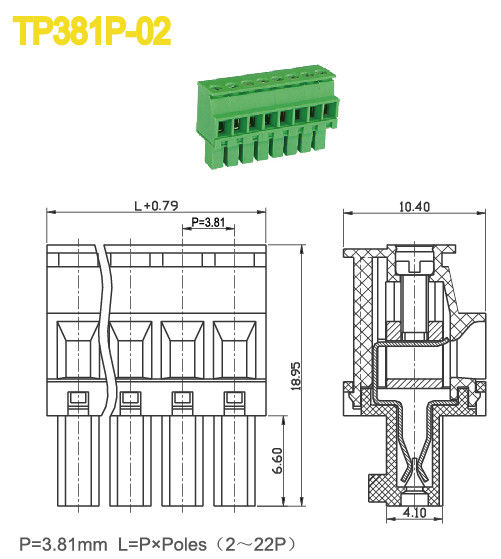

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| Wire Range AWG | 16-30 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Contactor / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M2 / 2-2.2 | ||
Competitive Advantage:
