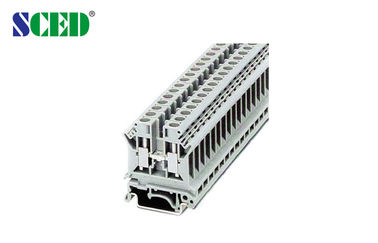

600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric

600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric

    • 600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric
    • 600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric
  • 600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric

    تفاصيل المنتج:

    Place of Origin: Shenzhen, China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: UL, CE
    Model Number: TR-6N

    شروط الدفع والشحن:

    Minimum Order Quantity: 500
    الأسعار: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Wire Inlet: Right angle wire inlet Terminal Width: 8.2mm
    Type: Rail Mounted Terminal Blocks, Electrical terminal Blocks, Terminal block connectors Wire Range: 26-8
    Rated Voltage: 600V Rated Current: 50A
    Color: Black Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev



    600V 50A Din Rail Mounted Terminal Blocks 8.2mm Feed Through Connector for Electric


    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

    Parameter



    Description                    Color

    Type

    Terminal                        Grey

    TR-6N

    600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for ElectricEnd Cover                      Grey


    D-TR-3/16

    600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for ElectricFixed Bridge


    FBI 10-8        Imax: 57A

    600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for ElectricInsertion Bridge


    EB 10-8        Imax: 57A

    600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for ElectricSeparating Plate


    TS-K

    600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for ElectricPartition Plate


    ATP-TR

    Zack Strip                                                  White

    ZB8

    Screwdriver

    SZS 1.0×4.0

    Rail Material

    aluminum

    Dimensions                                               mm

    8.2/42.5/2

    Height (U35: 7.5/U35: 15G 32)                 mm

    47/54.5/52

    Screw / Torque                                         Nm

    M4 / 1.5-1.8

    Stripping Length                                       mm

    10

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

    57 / 10

    Rated Surge Voltage / Contamination Class    KV / -

    8 / 3

    Surge Voltage Category







    Competitive Advantage:



    Stable good quality

    Competitive price

    Quickly response

    Full range products for selection

    Flexible to design the exact part per customers’ demand



     Drawing Photo



    600V 50A Din Rail Mounted Terminal Blocks , 8.2mm Feed Through Connector for Electric
