| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE, CQC |
| رقم الموديل: | TR40-02-BM0 |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| Pitch: | 14.80mm | Color: | Black |
|---|---|---|---|
| Voltage: | 600V | Current: | 40A |
| Material: | PC | Application: | Switch, Power Supply, Electric Lighting, Industry Control, |
| تسليط الضوء: | wiring terminal blocks,power terminal block,power terminal block |
||

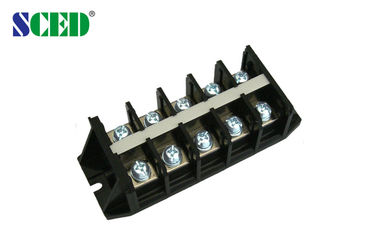

40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 8-22 | 8-22 | 10-20 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /40 | 1000 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 8 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 10-12 | ||
| Screw Torque mm | M4 / 14-18 | ||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,
Industry Control, Automation,
Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

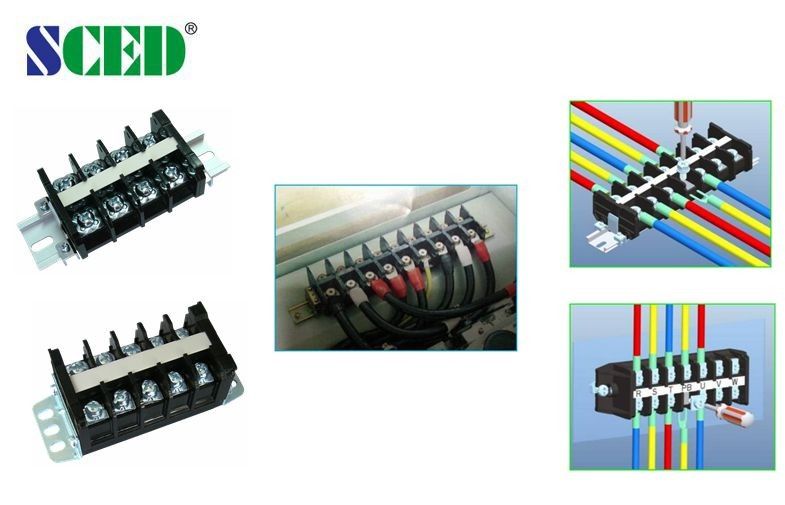

Drawing Photo
