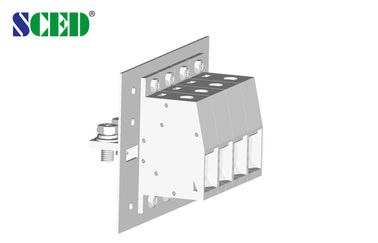

600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting

600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting

  • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
  • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
  • 600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting
تفاصيل المنتج:
مكان المنشأ: Shenzhen, China
اسم العلامة التجارية: SCED
إصدار الشهادات: UL, CE
رقم الموديل: TR-150N-03F
شروط الدفع والشحن:
الحد الأدنى لكمية: 200
الأسعار: Get latest price
تفاصيل التغليف: Standard Export Carton
وقت التسليم: 7-20 working days
شروط الدفع: T/T
القدرة على العرض: 100K poles each monthly
اتصل
مفصلة وصف المنتج
Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 30.00mm
Number Of Contacts: 1P-24P Wire Range: 2-300kcmil
Rated Voltage: 600V Rated Current: 285A
Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
تسليط الضوء:

wiring terminal block,feed through terminal blocks

,

feed through terminal blocks


600V 285A Through Panel Terminal Blocks 30.00mm 1-24 Number Of Contact Electric Terminal


Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 285





Wire Range                               AWG

2-300kcmil





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

630 / 309

800 / 309

1000 / 309

Rated Surge Voltage                     KV

6

6

6

Rated Connecting Capacity           mm2

150

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

26

Screw / Torque                    / lbf.in

M10 / 50-60




Competitive Advantage:


1, Stable good quality   2, Competitive price 3.    Quickly response

4.    Full range products for selection   5.    Flexible to design the exact part per customers’ demand

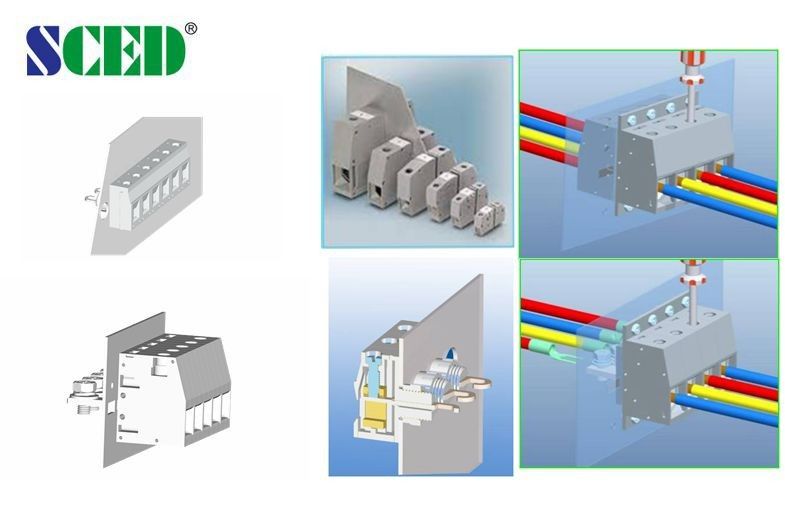

Drawing Photo



600V 285A Through Panel Terminal Blocks 30.00mm For Electric Lighting 0
