| مكان المنشأ: | Guangdong, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL |
| رقم الموديل: | TJ508-14 |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.042-0.082 |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| برغي: | م 3 | ملعب كورة قدم: | 5.08 مم |
|---|---|---|---|
| اللون: | أخضر | حاضر: | 10 أ |
| الجهد االكهربى: | 300 فولت | أعمدة: | 2-24 عمودًا |
| قفص المشبك: | نحاس | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
| مقاومة العزل: | فوق DC500V ، 500MΩ | مقاومة التواصل: | أقل من 8 مΩ |
| تسليط الضوء: | screw type terminal block,screw terminal block connector,screw terminal block connector |
||
Detailed product Description:

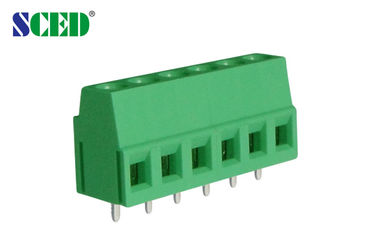

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet: ■Right angle wire inlet
Decks: ■Single Deck
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Applications:
Normally our products will be used in a lot of fileds and industries, for example:
Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security, Frequency Converters and Server Site and so on.
Competitive Advantage:
