| مكان المنشأ: | Guangdong, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL |
| رقم الموديل: | TP508H-76V |
| الحد الأدنى لكمية: | 1000 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.018-0.045 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| اللون: | لون أخضر | الجهد االكهربى: | 300 فولت |
|---|---|---|---|
| ملعب كورة قدم: | 7.62 ملم | تيار: | 18 أ |
| أعمدة: | 2-16 عمود | صالة: | نحاس |
| مقاومة التواصل: | أقل من 8 مΩ | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
| فئة القابلية للاشتعال: | UL94 ، V-0 | مقاومة العزل: | فوق DC500V ، 500MΩ |
| تسليط الضوء: | pluggable terminal block connector,electrical terminal blocks,electrical terminal blocks |
||

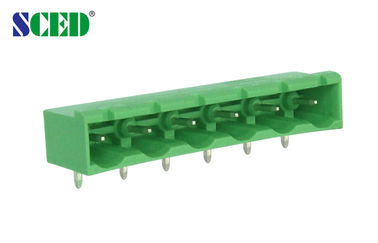

Male Pluggable Terminal Block Green Color Right Angle 7.62mm 300V 18A
Detailed product Description:
Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.
Competitive Advantage:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
