مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TB952-02 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
ملعب كورة قدم: | 9.525mm | اللون: | أسود |
---|---|---|---|
تيار مصنّف: | 20A | جهد فلطيّ مصنّف: | 300V |
أعمدة: | 2-24 ف | مواد: | PBT |
تسليط الضوء: | electrical terminal block,pcb terminal blocks,pcb terminal blocks |

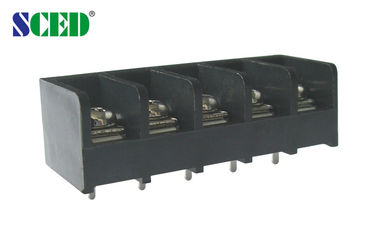

9.525mm Barrier Terminal Block 300V 20A 2 - 24P PBT Brass Screw Clamp Termin Connector
Parameter
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 20 | 300 / 10 | |
Wire Range AWG | 12-22 | 12-22 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 4 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass /Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ2.1 | ||
Stripping Length mm | 8-9 | ||
Screw / Torque / lbf.in | M 3.5 / 7-10 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Drawing Photo
