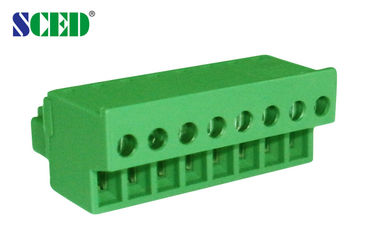

Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P 300V 8A

Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P 300V 8A

    • Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P  300V 8A
    • Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P  300V 8A
    • Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P  300V 8A
  • Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P  300V 8A

    تفاصيل المنتج:

    Place of Origin: Shenzhen, China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: UL, CE
    Model Number: TP381P-07

    شروط الدفع والشحن:

    Minimum Order Quantity: 500
    الأسعار: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    ملعب كورة قدم: 3.81mm اللون: أخضر
    تصنيف currennt: 8A جهد فلطيّ مصنّف: 300
    مواد: PA66 مجموعة الأسلاك: 16-30 AWG
    أعمدة المتاحة: 2-24 ف العنصر: ذكر أنثى كتلة المحطة

    Plug - in Terminal Blocks Male Female Terminal Block Connector 3.81mm 2P-24P 300V 8A



    ■ Single Level; □Double Levels; □Triple Levels



    Parameter



    UL Technical Data B C D
    Rated Voltage / Current V/A 300/8
    Wire Range AWG 16-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Steel / Zinc Plated
    Contactor / Plating Phosphor Bronze / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    Stripping Length mm 7
    Screw / Torque / lbf.in M2 / 2-2.2



    How to order:



    Plug - in Terminal Blocks Male , Female Terminal Block Connector 3.81mm 2P-24P  300V 8A



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Competitive Advantage:



    • Stable good quality
    • Competitive price
    • Quickly response
    • Full range products for selection
    • Flexible to design the exact part per customers’ demand



    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Tag:

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

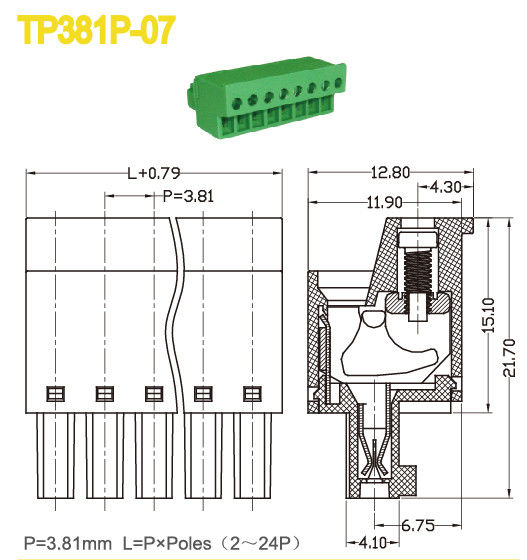

    Drawing Photo
