| مكان المنشأ: | Guangdong China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL, CUL,CQC and VDE etc. |
| رقم الموديل: | TP508P-06 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.012-0.1 per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| نوع: | الجزء الأنثوي | اللون: | لون أخضر |
|---|---|---|---|
| ملعب كورة قدم: | 5.08 ملم | مقاومة العزل: | فوق DC500V ، 500MΩ |
| فئة القابلية للاشتعال: | UL94 ، V-0 | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
| مقاومة التواصل: | أقل من 8 مΩ | تيار: | 18 أ |
| أعمدة: | 2-22 عمود | الجهد االكهربى: | 300 فولت |
| تسليط الضوء: | pluggable terminal block connector,electrical terminal blocks,electrical terminal blocks |
||

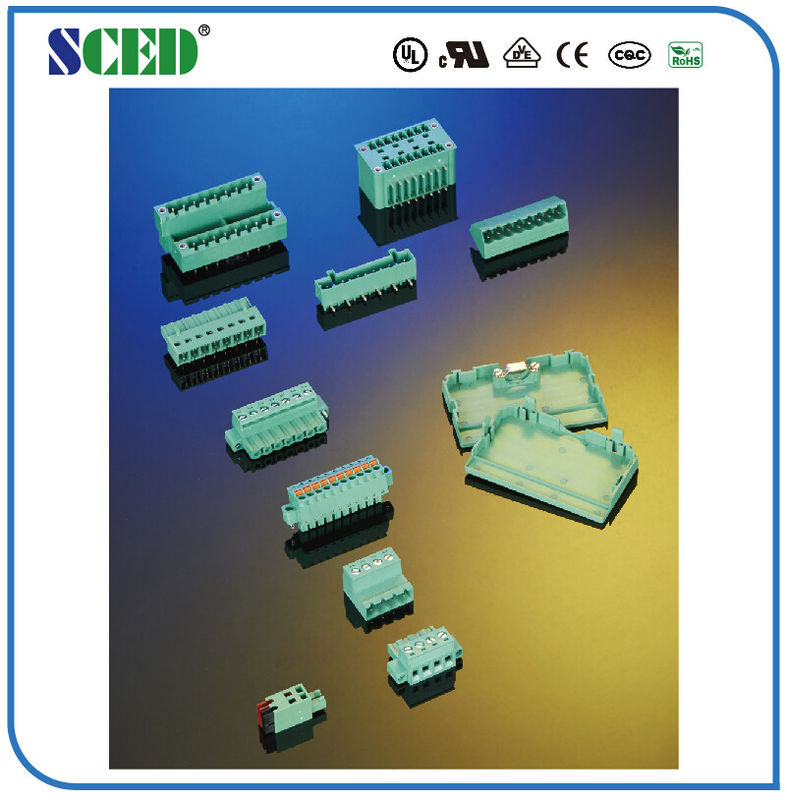

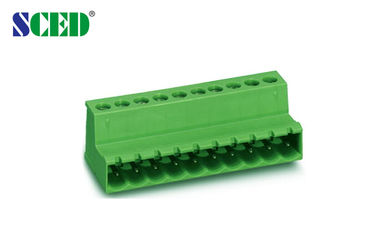

2-22 Poles Pluggable Terminal Block 5.08mm Pitch Female Part 300V 18A
Detailed product Description:
Plug, Male, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Medical Equipments, Communication, Power Supply, Automation, Security, Industrial Control, PCB etc..
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 630 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Contactor / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
