مكان المنشأ: | Guangdong,China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL,CE,CUL,CQC,VDE etc. |
رقم الموديل: | TB1450a-06-C |
الحد الأدنى لكمية: | 500 Piece/Pieces |
---|---|
الأسعار: | USD 2.1-4.2 Per PCS |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm |
وقت التسليم: | 5-20 Working Days |
شروط الدفع: | L/C, T/T |
القدرة على العرض: | 1000000 Pole/Poles per Month |
ملعب كورة قدم: | 17 ملم | أعمدة: | 9 أقطاب |
---|---|---|---|
اللون: | أسود | الجهد االكهربى: | 600 فولت |
تيار: | 57 أ | برغي: | م 5 |
طول التجريد: | 12-16 ملم | عزم الدوران: | 18-20 رطل في البوصة |
مجموعة الأسلاك: | 20-6 أوغ | مادة العزل: | PBT |
تسليط الضوء: | barrier type terminal block,pcb terminal blocks,pcb terminal blocks |

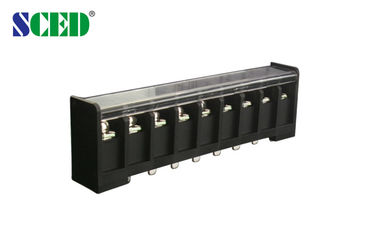

Black Brass Barrier Terminal Block with Plastic Cover 600V 57A 17mm Pitch
Detailed product Description:
Pitch 17.00mm, 600V 57A, 9P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment, Military etc..

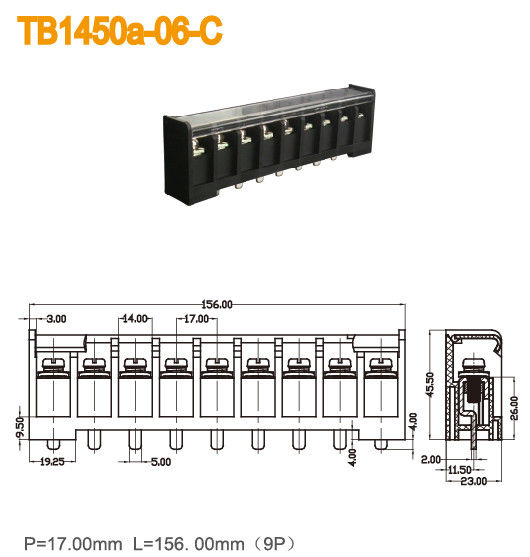

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 57 | 600 / 57 | 600 / 5 |
Wire Range AWG | 20-6 | 20-6 | 20-6 |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 57 | 1000 / 57 | 1000 / 57 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 10 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass /Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | 2.4x5.4 | ||
Stripping Length mm | 12-16 | ||
Screw / Torque / lbf.in | M 5 / 18-20 |
Competitive Advantage:
