| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE,UL |
| رقم الموديل: | TJ508-17 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.05-0.12 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-10 working days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| اللون: | لون أخضر | ملعب كورة قدم: | 5.08 ملم |
|---|---|---|---|
| تيار: | 10 أ | الجهد االكهربى: | 300 فولت |
| أعمدة: | أي أعمدة متاحة | برغي: | م 3 |
| عزم الدوران: | 4.4-5.4 رطل في البوصة | مادة العزل: | PA66 |
| فئة القابلية للاشتعال: | UL94-V0 | طول التجريد: | 6-7 ملم |
| تسليط الضوء: | pcb terminal block connectors,pcb mount terminal block,pcb mount terminal block |
||

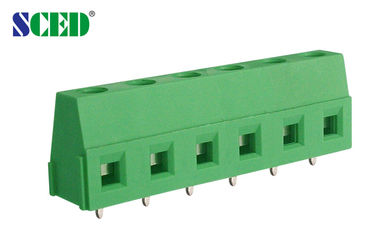

5.08mm PCB Terminal Block 300V 10A Brass Green Euro Type Raising Series
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels:■Single Deck; □Double decks; □Triple decks
Standard color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:

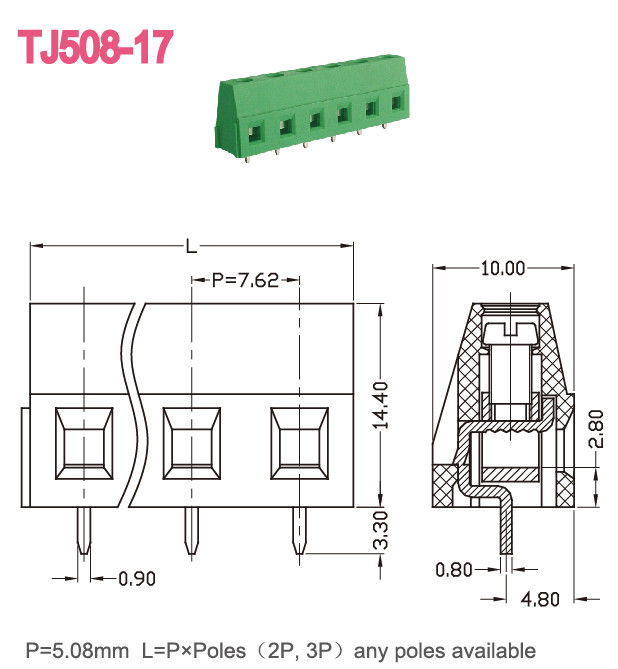

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.5 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Applications:
Our terminal blocks can be used in a lot of fields and industries. Such as:
1. Communication, Electrical equipments, Electric Lighting, Security
2. Power Supply, PCB, Rail Transportation, Medical Equipment
3. Military, Automation, Industrial Control, Frequency Converters, Server Site etc.
