مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TR-6N-01 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
نوع: | لوح جبل | ملعب كورة قدم: | 13.50mm |
---|---|---|---|
عدد جهات الاتصال: | أي البولنديين المتاحة | مجموعة الأسلاك: | 8-26 AWG |
جهد فلطيّ مصنّف: | 600V | تيار مصنّف: | 50A |
اللون: | رمادي | تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك |
تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |

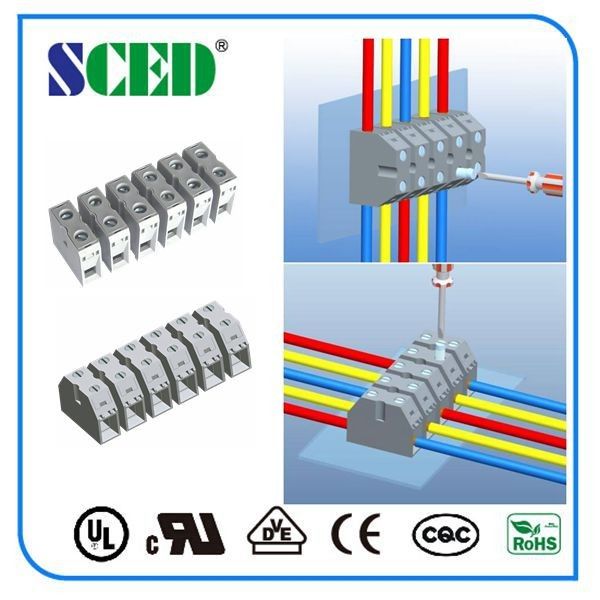

600V 50A Panel Mount Terminal Block Connector Grey PA66 Copper Conduction Board Connector
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Applications:
Transformer, power control, electrical equipment, frequency converter etc.
Parameter:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 50 |
600 /150 |
|
Wire Range AWG |
8-26 |
8-26 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 / 57 |
1000 / 57 |
1000 / 57 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
6 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66/ UL94, V-0 |
||
Conduction Board Plating |
Copper/Nickel Plated |
||
Clamp Cage Plating |
Brass / Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
7-8 |
||
Screw / Torque / lbf.in |
M 4 / 8-10.6 |
Competitive Advantage:
Stable good quality, Competitive price, Quickly response, Full range products for selection, Flexible to design the exact part per customers’ demand

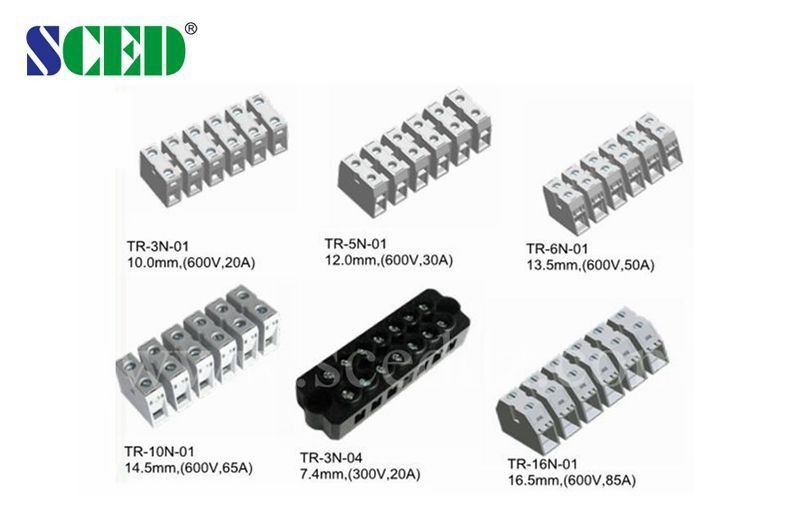

Drawing Photo
More items interest, please feel free to contact us.
