| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE |
| رقم الموديل: | TP381H-07V |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.015-0.032 per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 3.81 ملم | الجهد االكهربى: | 300 فولت |
|---|---|---|---|
| تيار: | 8 أ | أعمدة: | 2-24 عمودًا |
| أبعاد الدبوس: | 0.8 * 0.8 مم | قطر ثقب ثنائي الفينيل متعدد الكلور: | 1.2 ملم |
| صالة: | نحاس | مادة العزل: | PA66 |
| فئة القابلية للاشتعال: | UL94-V0 | نوع: | جزء الذكور |
| تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
||

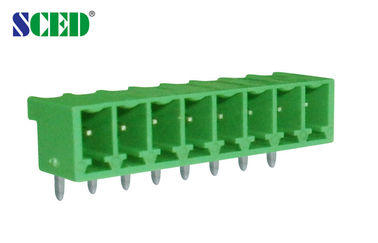

Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P Brass
Detailed product Description:
Pitch: 3.81mm, 300V 8A, 2P-24P, Socket, Pluggable Terminal blocks, Plug-in terminal block
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our terminal blocks can be used in the following fields and industries:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

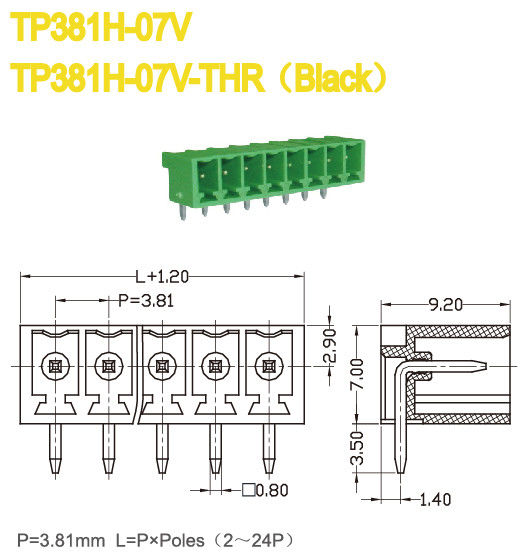

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/8 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.2 | ||
| Pin Dimension mm | 0.8 x 0.8 | ||
Competitive Advantage:
1. Flexible to design the exact part per customers’ demand
2. Stable good quality and competitive price
3. More than 1000 models for selection
4. Quick response and good after-sales service.
