مكان المنشأ: | China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL,CE,CUL,CQC and VDE etc. |
رقم الموديل: | TB820-00 |
الحد الأدنى لكمية: | 1000 Piece/Pieces |
---|---|
الأسعار: | USD 0.9-1.9 per pcs |
تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
وقت التسليم: | 5-20 working days |
شروط الدفع: | L/C, T/T |
القدرة على العرض: | 1000000 Pole/Poles per Month |
مستوى: | مستويين | نوع: | حاجز |
---|---|---|---|
أعمدة: | 27 عمودًا | ملعب كورة قدم: | 8.2 ملم |
تيار: | 10 أ | برغي: | م 3 |
الجهد االكهربى: | 300 فولت | مجموعة الأسلاك: | 14-22 أوغ |
صالة: | نحاس | عزم الدوران: | 5-7 رطل في البوصة |
تسليط الضوء: | power distribution terminal block,power terminal block connector,power terminal block connector |

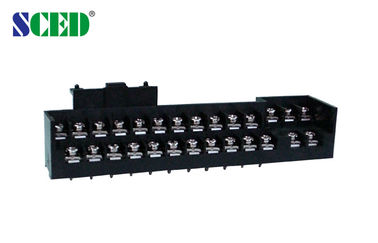

Double Rows Power Terminal Blocks 27 Poles M3 Screw 10A 300V
Detailed product Description:
Pitch 8.20mm, 300V 10A, 27*2P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: □Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors are also available and you can choose and order the color you want.

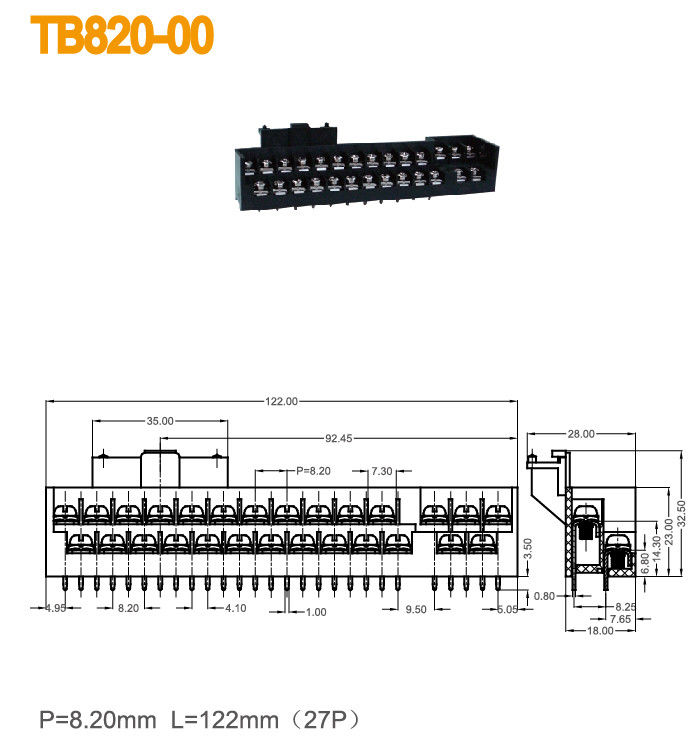

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 | 300/10 | |
Wire Range AWG | 14-22 | 14-22 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 320 / 24 | 320 / 24 | 400 / 24 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.6 | ||
Stripping Length mm | 6-7 | ||
Screw / Torque / lbf.in | M 3 / 5-7 |
Applications:
Our products can be used in below fileds and industries:
1.Medical equipment, military, security, communication
2.Electrical equipment, power supply, PCB
3.Automation, industrial control, server site, frequency converters etc.
Competitive Advantage:
