| مكان المنشأ: | China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE |
| رقم الموديل: | TB1100-18 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.076-0.152 Per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | Working Days: 5-20 |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| اللون: | أسود | بلاستيك: | PBT |
|---|---|---|---|
| الجهد االكهربى: | 600 فولت | تيار: | 30 أ |
| ملعب كورة قدم: | 10 ملم | أعمدة: | أي أعمدة متاحة |
| صالة: | نحاس | برغي: | M3.5 |
| طول التجريد: | 10-11 ملم | مجموعة الأسلاك: | 10-22 أوغ |
| تسليط الضوء: | barrier type terminal block,pcb terminal blocks,pcb terminal blocks |
||

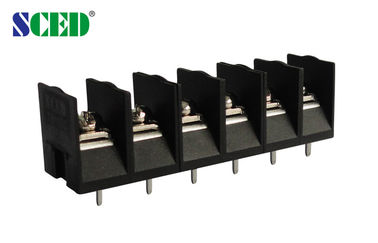

Plastic PBT Barrier Terminal Blocks Brass 10mm Pitch 600V 30A Screw M3.5
Detailed product Description:
Pitch 10.00mm, 600V 30A, 9-2P or 3P, Barrier Terminal blocks, power terminal blocks
■Right angle wire inlet
■Single Level
Standard color: Black and other colors also can be available.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | 600 / 5 |
| Wire Range AWG | 10-22 | 10 / 22 | 10-22 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 30 | 800 / 30 | 1000 / 30 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.6 | ||
| Stripping Length mm | 10-11 | ||
| Screw / Torque / lbf.in | M 3.5 / 8-10 | ||
Competitive Advantage:
Applications:
Normally our products will be used in below industries:
1.Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military
2.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting and so on.
