| مكان المنشأ: | Guangdong China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE |
| رقم الموديل: | TR-10N-01 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.215 -0.432 Per Pole |
| تفاصيل التغليف: | Normally Our Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 Working Days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 14.5 ملم | أعمدة: | 2-16 عمود |
|---|---|---|---|
| الجهد االكهربى: | 600 فولت | تيار: | 65 أ |
| مجموعة الأسلاك: | 6-24 أوغ | مادة: | PA66 |
| فئة القابلية للاشتعال: | UL94-V0 | طول التجريد: | 9-10 ملم |
| برغي: | م 5 | قفص المشبك: | نحاس |
| تسليط الضوء: | pcb terminal block connectors,pcb mount terminal block,pcb mount terminal block |
||

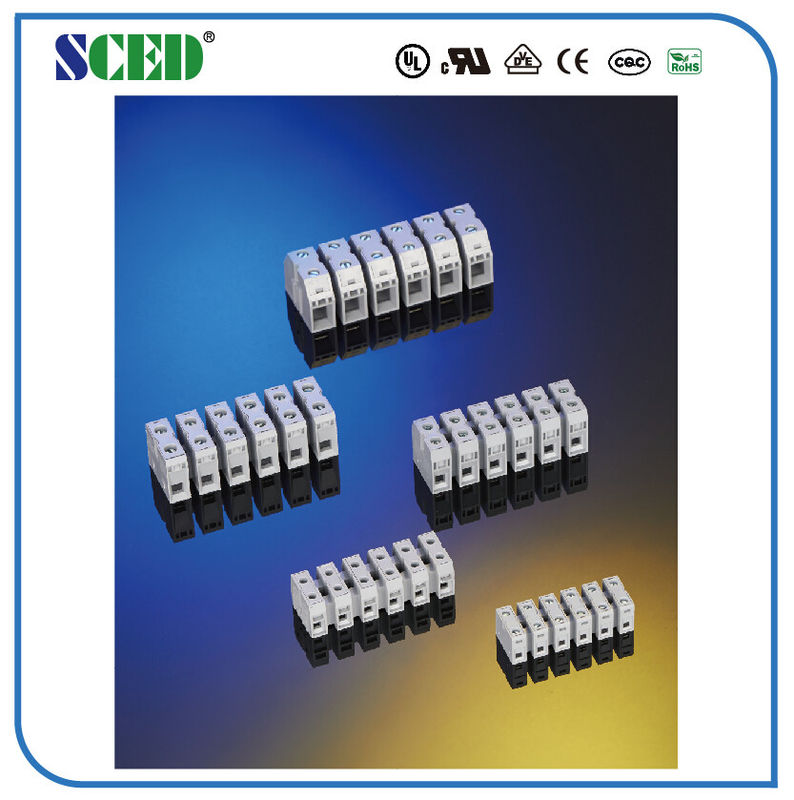

Pitch 14.5mm Feed Through Terminal Block 2-16 Poles 600V 65A
Detailed product Description:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 65 | 600 / 65 | 600 / 5 |
| Wire Range AWG | 6-24 | 6-24 | 6-24 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 65 | 1000 / 65 | 1000 / 65 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 9-10 | ||
| Screw / Torque / lbf.in | M5 / 10.6-13 | ||
Pitch 14.50mm, 600V 65A, 2-16P, Feed Through Terminal Blocks
■Wire Inlet:right angle
■Single Level
Standard color: Grey and other colors are available as well.
Applications:
Our products are often used in power supply, industril control, security, medical equipment, communication and automation and so on.
