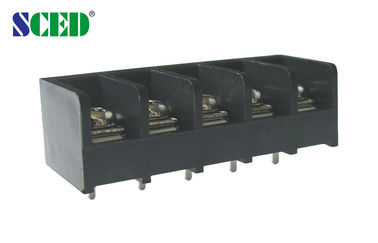

Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet

Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet

    • Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
    • Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
    • Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
  • Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet

    تفاصيل المنتج:

    Place of Origin: Guangdong,China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: UL, CE
    Model Number: TB952-02

    شروط الدفع والشحن:

    Minimum Order Quantity: 500 Piece/Pieces
    الأسعار: USD 0.048-0.088 PER Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Pitch: 9.52mm Wire Inlet: Right angle
    Voltage: 300V Current: 20A
    Color: Black Plastic: PBT
    Metal Parts: Brass Rated Surge Voltage: No abnormal within 1 minute
    Inflammability Class: UL94, V-0 Insulation Resistance: Above DC500V, 500MΩ

    Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet



    Detailed product Description:



    Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Level; □Double levels; □Triple levels

    Standard color: Black. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

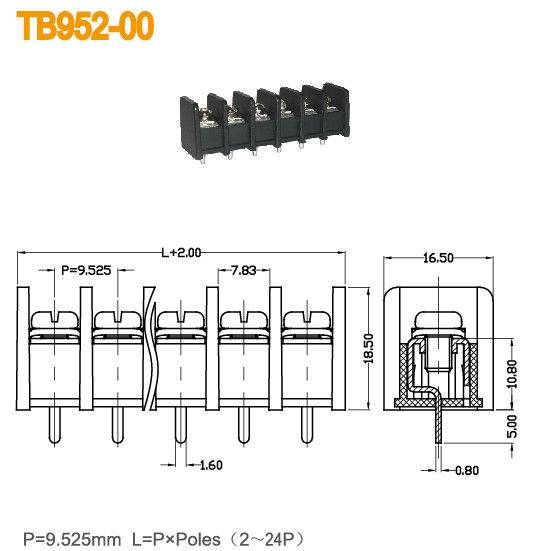

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 20   300 / 10
    Wire Range AWG 12-22   12-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 500 / 32 630 / 32 800 / 32
    Rated Surge Voltage KV 6 6 6
    Rated Connecting Capacity mm2 4
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ2.1
    Stripping Length mm 8-9
    Screw / Torque / lbf.in M 3.5 / 7-10



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demandSpacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
