| مكان المنشأ: | Guangdong China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CE,CUL,CQC and VDE etc. |
| رقم الموديل: | TJ508-06 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.04-0.09 per Pole |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
| وقت التسليم: | 5-20 working days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 6.35 ملم | فئة القابلية للاشتعال: | UL94-V0 |
|---|---|---|---|
| مادة العزل: | PA66 | الجزء المعدني: | نحاس |
| الجهد االكهربى: | 300 فولت | تيار: | 30 أ |
| اللون: | لون أخضر | أعمدة: | 2-24 عمودًا |
| مدخل السلك: | زاوية مستقيمة | تصنيف الجهد الكهربائي: | لا يوجد شذوذ خلال 1 دقيقة |
| تسليط الضوء: | pcb screw terminal blocks,pcb mount terminal block,pcb mount terminal block |
||

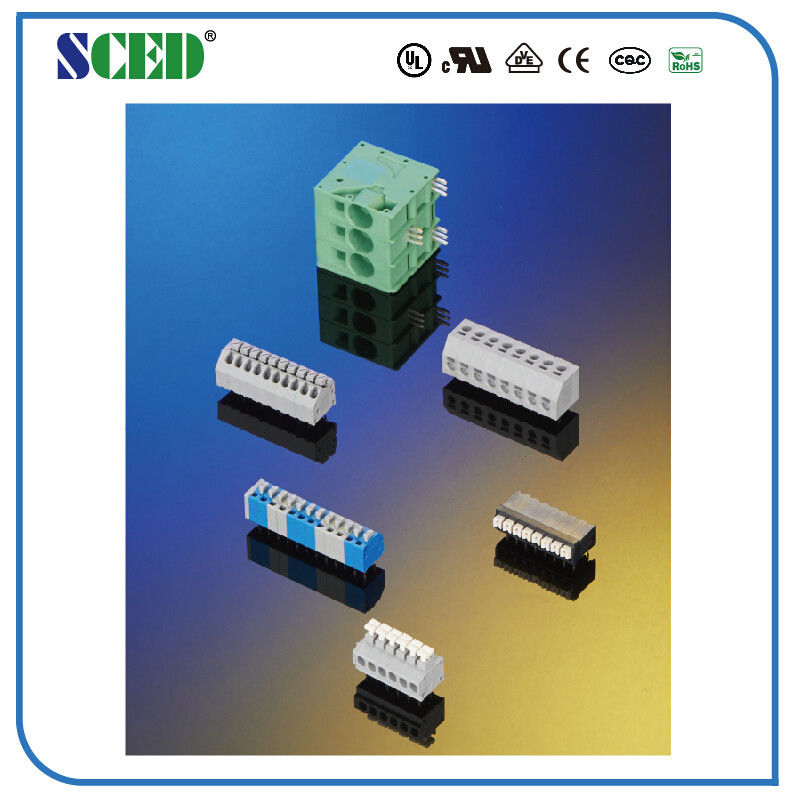

Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
Detailed product Description:
Pitch 6.35mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
They can be used in a lot of industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 10 | 300 / 10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 32 | 320 / 32 | 630 / 32 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 4.0 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.5 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
