مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TP381P-20 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك | اللون: | أخضر |
---|---|---|---|
عدد جهات الاتصال: | 2P-22P | ملعب كورة قدم: | 3.50mm |
تيار مصنّف: | 8A | جهد فلطيّ مصنّف: | 300V |
نوع: | سد العجز في كتل المحطة الطرفية ، كتل المحطة الطرفية القابلة للتوصيل ، المكونات في كتل المحطة الطرفية | مجموعة الأسلاك: | 16-30 AWG |
تسليط الضوء: | power distribution terminal block,power terminal block connector,power terminal block connector |
3.50mm Male and Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
■Single Level; □Double Levels; □Triple Levels

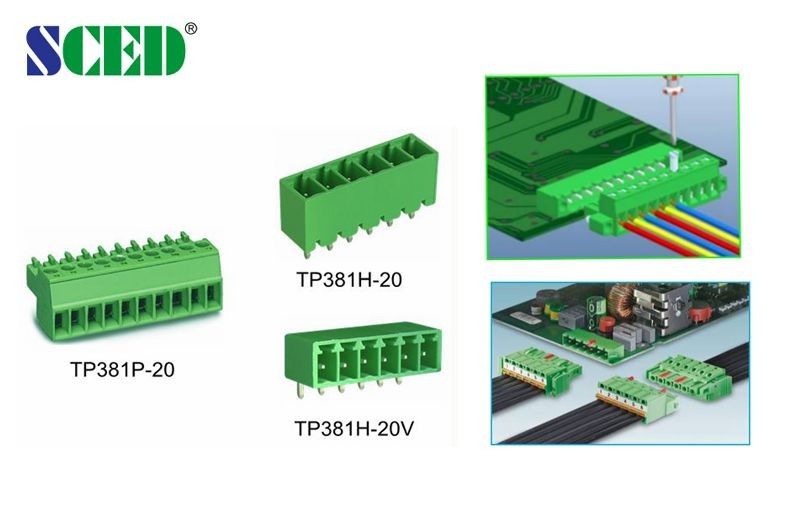

This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:

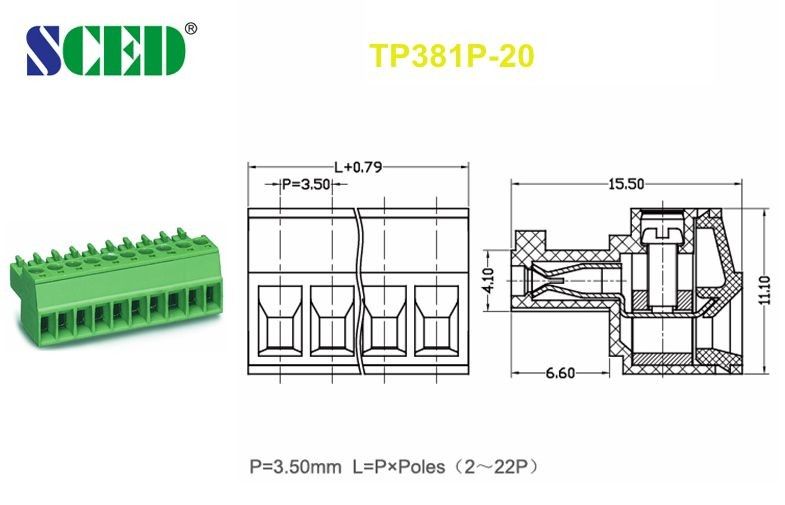

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 8 |
|
|
Wire Range AWG |
16-30 |
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
7 |
||
Screw / Torque / lbf.in |
M2 / 2-2.2 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

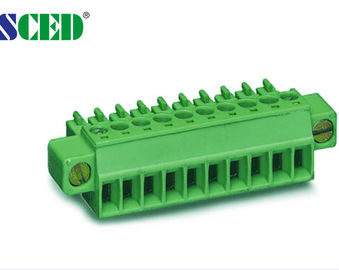

Drawing Photo
