M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector

M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector
M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector

صورة كبيرة :  M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector

تفاصيل المنتج:

مكان المنشأ: SHENZHEN CHINA
اسم العلامة التجارية: SCED
إصدار الشهادات: CE ROHS

شروط الدفع والشحن:

الحد الأدنى لكمية: 200
تفاصيل التغليف: Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
وقت التسليم: 7-20 working days
شروط الدفع: L/C, T/T
القدرة على العرض: 1KK poles each monthly
مفصلة وصف المنتج
نوع: لوح جبل ملعب كورة قدم: 12.70mm
برغي: الصلب M4 عزم الدوران: 10.6-13 Ibf.in
مجلس التوصيل: نحاس المواد العازلة: PA66
تسليط الضوء:

pcb mount terminal blocks,panel mount terminal block connector

,

panel mount terminal block connector

12.7mm 600V M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector



1. Quick Detail:



The current : 60A  Voltage: 600V

Insulation Material: PA66  Inflammability Classl: UL94, V-0



2. Description:


1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,



2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.



3. Current: 60A.



3. Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



2. Industry Control, Automation,



3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



Elevator, etc..



4. Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                                AWG

8-26

8-26



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M4 / 10.6-13



5. Feature Advantage:



1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


3. It has very good mechanical properties and electrical properties,





6. Competitive Advantage:



1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



3. Discount offered is based on qty.

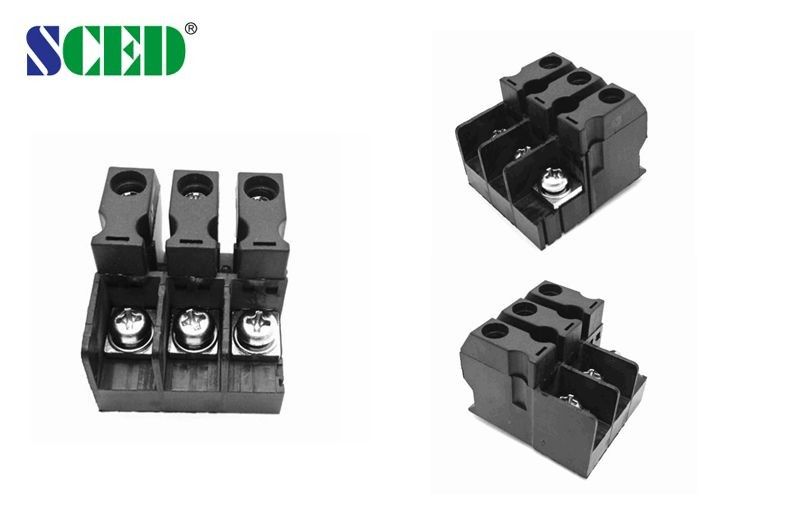

M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector 0

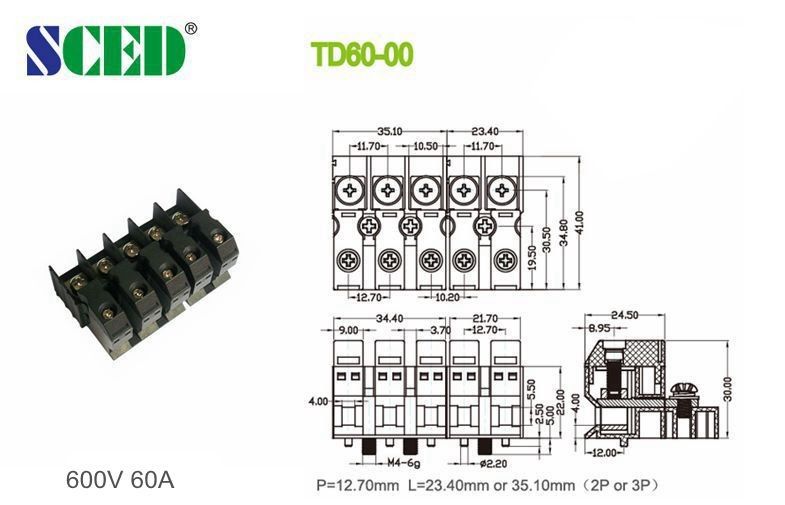

M4 Screw Panel Mount Terminal Block PA66 Housing Brass Power Connector 1
