| مكان المنشأ: | SHENZHEN CHINA |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | CE ROHS |
| رقم الموديل: | TD75-01-C |
| الحد الأدنى لكمية: | 200 |
|---|---|
| تفاصيل التغليف: | Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1KK poles each monthly |
| نوع: | تغذية من خلال | ملعب كورة قدم: | 16.00mm |
|---|---|---|---|
| برغي: | الصلب M6 | عزم الدوران: | 20-22 Ibf.in |
| مجلس التوصيل: | نحاس | المواد العازلة: | PBT |
| مجموعة الأسلاك: | 4-22 AWG | تقييمه ربط القدرات: | 22 مم 2 |
| تسليط الضوء: | power terminal block connector,electric terminal block,electric terminal block |
||

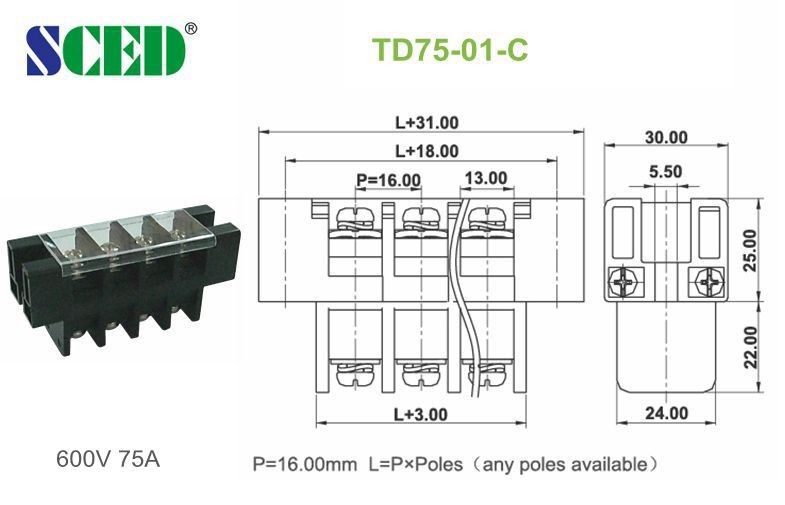

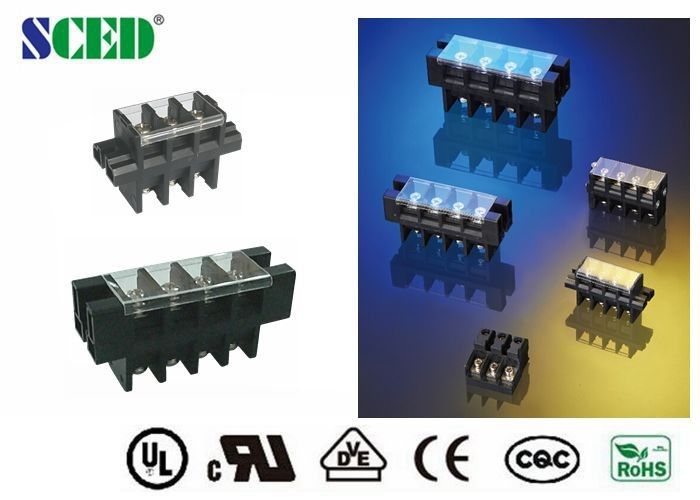

600V 75A Power Terminal Blocks Connector 16.00mm Electrical Brass Conduction Board
1. Quick Detail:
The current : 75A Voltage: 600V
Insulation Material: PBT Inflammability Classl: UL94, V-0 The weight: (3P: 142G)
2. Description:
1. It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a,
2. You can configure the article identifies the short, protective cover plate, sheet in the attachment.
3. The Current: 75A.
3. Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,
2. Industry Control, Automation,
3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
4. Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 75 |
600 / 75 |
600 / 5 |
|
Wire Range AWG |
4-22 |
4-22 |
4-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 75 |
1000 / 75 |
1000 / 75 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
22 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT/ UL94, V-0 |
||
|
Conduction Board / Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
12-13 |
||
|
Screw / Torque / lbf.in |
M 6 / 20-22 |
||
5. Feature Advantage:
1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.
2. It can be stackable to be different poles, easy to be mounted on PCB or control board,
3. It has very good mechanical properties and electrical properties,
6. Competitive Advantage:
1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;
3. Discount offered is based on qty.
Tag: Power Terminal Block, Screw Terminal Block, Panel Mount Terminal Block
