| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Green |
|---|---|---|---|
| Number of Contacts: | 2-9 Poles | Pitch: | 15.00mm |
| Rated Current: | 115A | Rated Voltage: | 600V |
| Wire Range: | 2-20 AWG | Material housing: | PA66 |
| تسليط الضوء: | screw connection terminal block,screw type terminal block,screw type terminal block |
||

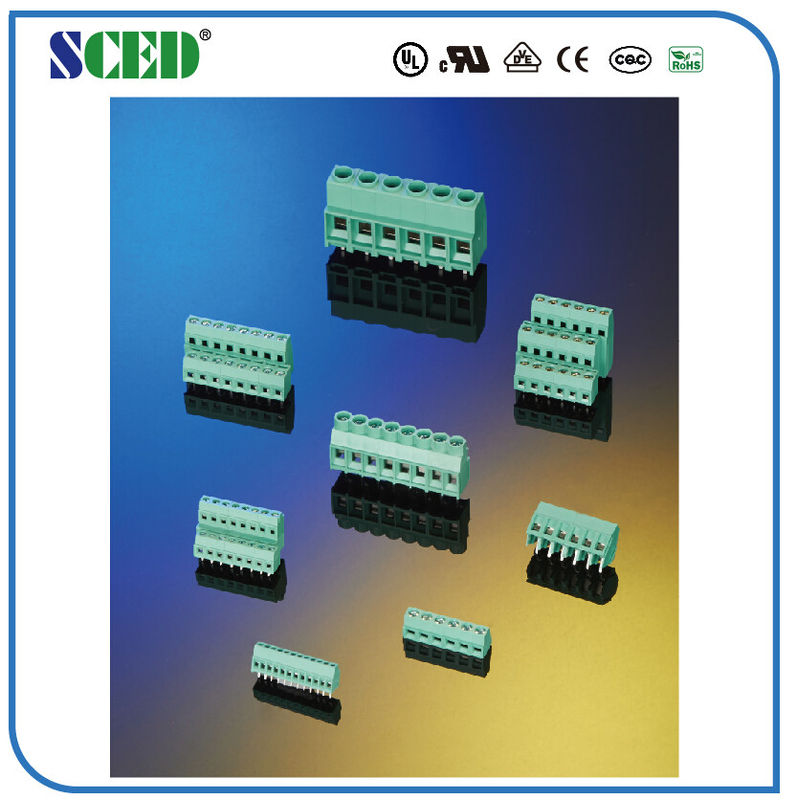

Pcb Screw Terminal Block 15.00mm 115A Hign Current Terminal Connector 2 - 9 pin
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you
want.
Tag:
PCB terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 115 |
|
|
|
Wire Range AWG |
2-20 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
1000 / 125 |
1000 / 125 |
1000 / 125 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
35 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel /Zinc Plated |
||
|
Terminal / Plating |
Copper / Tin Plated |
||
| Screw / Plating | Steel / Zinc Plated | ||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ2.0 |
||
|
Stripping Length mm |
18 |
||
| Screw / Torque / Ibf.in | M5 / 18-22 | ||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo
