مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TR20-02-M0 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
نوع: | لوحة جبل محطة كتلة ، كتل محطة حاجز ، كتل محطة الطاقة ، محطة كتلة الكهربائية | ملعب كورة قدم: | 10.80mm |
---|---|---|---|
عدد جهات الاتصال: | أي البولنديين المتاحة | مجموعة الأسلاك: | 24-12 |
جهد فلطيّ مصنّف: | 600V | تيار مصنّف: | 20A |
اللون: | أسود | تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك |
تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |
300V 20A Power Terminal Connector 10.8mm Panel Mounted Terminal Block Screw Barrier Type
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 20 |
600 / 20 |
|
Wire Range AWG |
24-12 |
24-12 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 /20 |
1000 / 20 |
1000 / 20 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
3.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
Conduction Board/ Plating |
Brass /Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
9-10 |
||
Screw Torque mm |
M4 / 10.6-13 |
Competitive Advantage:

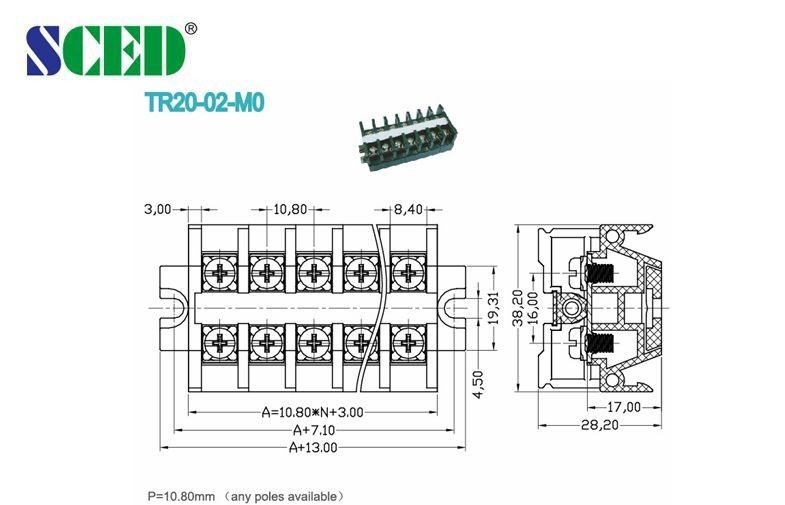

Drawing Photo:
