| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE, CQC |
| رقم الموديل: | TR150-04 |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| Pitch: | 25.00mm | Poles: | 3 Poles |
|---|---|---|---|
| Voltage: | 600V | Current: | 150A |
| Material: | PC | Color: | Black |
| تسليط الضوء: | wiring terminal blocks,power terminal block,power terminal block |
||

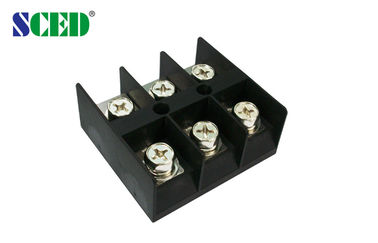

3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm
Parameter excel data
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 150 | 600 / 150 | |
| Wire Range AWG | 1/0-20 | 1/0-20 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /150 | 1000 / 150 | 1000 / 150 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 60 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| Stripping Length mm | 18-19 | ||
| Screw Torque mm | M8 / 30-32 | ||
Drawing Specifications:
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
