7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

    • 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
    • 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
  • 7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: UL, CE
    Model Number: TB762-00F-D3-C

    شروط الدفع والشحن:

    Minimum Order Quantity: 500
    الأسعار: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
    Pitch: 7.62mm Rated Voltage: 300V
    Type: Barrier Terminal Block,Power terminal blocks, Wire Range: 14-22
    Poles: 2-20 Poles Material: PBT

    7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row



    Details:



    7.62mm pitch barrier type strips 300V 15A 2-20 Poles  14-22 AWG with Cover



    Parameter





    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 15



    300 / 10

    Wire Range                               AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                     KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter               mm

    φ1.2x3.4

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

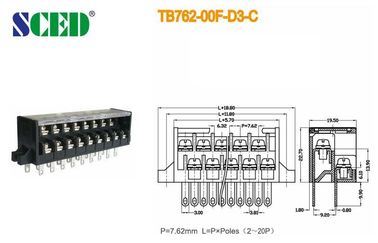

    How to order:

     7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Tag:

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors



    7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
