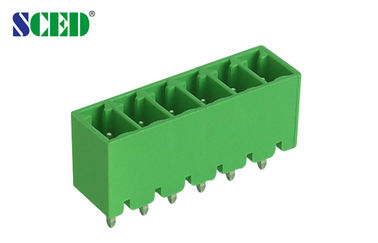

3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet

3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet

  • 3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet
  • 3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet
3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet
تفاصيل المنتج:
مكان المنشأ: Shenzhen, China
اسم العلامة التجارية: SCED
إصدار الشهادات: UL, CE
رقم الموديل: TP381H-20
شروط الدفع والشحن:
الحد الأدنى لكمية: 500
الأسعار: Get latest price
تفاصيل التغليف: Standard Export Carton
وقت التسليم: 7-20 working days
شروط الدفع: T/T
القدرة على العرض: 1KK poles each monthly
اتصل
مفصلة وصف المنتج
سلك مدخل: مدخل السلك العمودي تطبيقات: ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك
اللون: أخضر عدد جهات الاتصال: 2P-22P
ملعب كورة قدم: 3.50mm تيار مصنّف: 8A
جهد فلطيّ مصنّف: 300V اكتب: سد العجز في كتل المحطة الطرفية ، كتل المحطة الطرفية القابلة للتوصيل ، المكونات في كتل المحطة الطرفية
تسليط الضوء:

power distribution terminal block,electric terminal block

,

electric terminal block

3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet





How to order:

3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..





Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A, 2P - 22P


□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

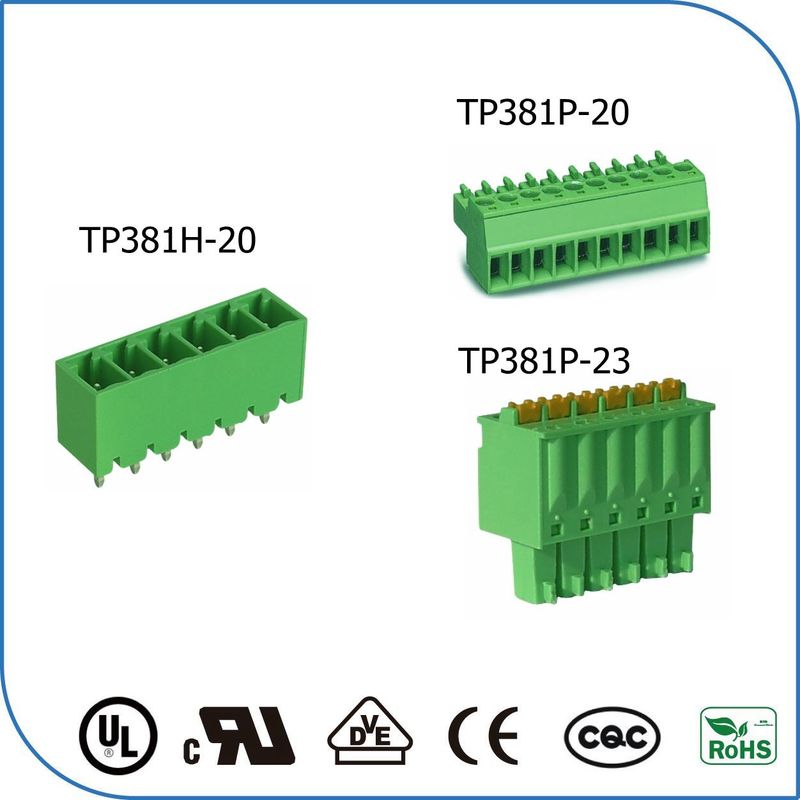

This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                               AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                    KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.2

PinDimension                        mm

0.8 x 0.8





 Drawing Photo


3.50mm Wiring Terminal Block 2 Pin - 22 Pin Vertical Wire Inlet 1

Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
