| مكان المنشأ: | Guangdong,China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CUL,CE,CQC and VDE etc. |
| رقم الموديل: | TR-3N-01 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.102-0.205 |
| تفاصيل التغليف: | 5-20 days |
| شروط الدفع: | T/T, L/C |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| ملعب كورة قدم: | 10 ملم | عمود: | 2-16 عمود متاح |
|---|---|---|---|
| تيار: | 20 أ | الجهد االكهربى: | 600 فولت |
| مجموعة الأسلاك: | 12-18AWG | بلاستيك: | PA66 |
| فئة القابلية للاشتعال: | UL94-V0 | طول التجريد: | 5-6 ملم |
| برغي: | م 3 | تصفيح: | النيكل مطلي |
| تسليط الضوء: | pcb screw terminal blocks,pcb mount terminal block,pcb mount terminal block |
||

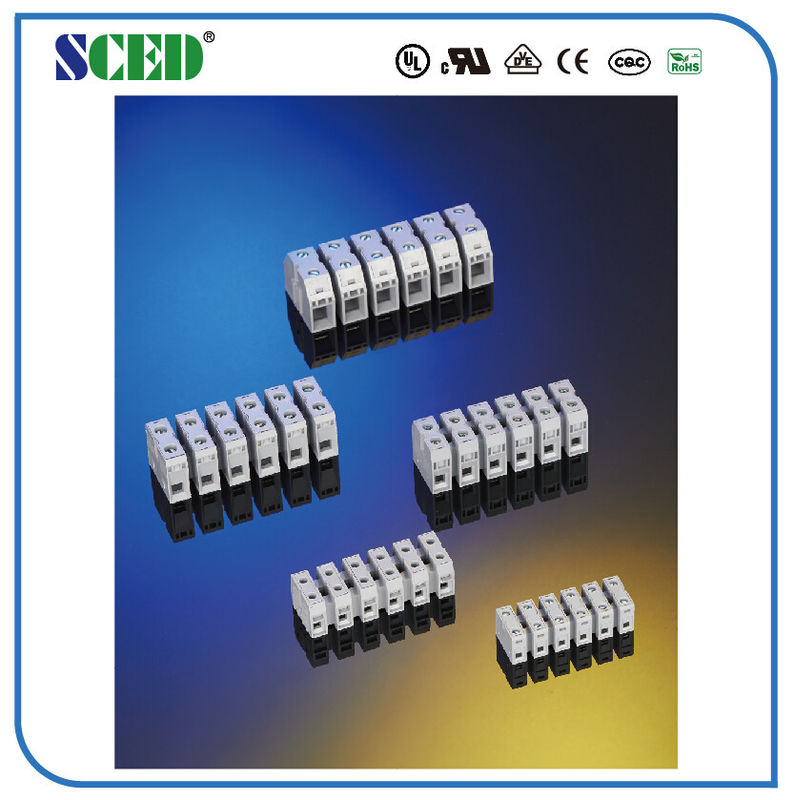

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
Detailed product Description:
Pitch10.00mm, 600V 20A, 2-16P, Feed-Through Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting, Industry Control, Automation
3.Rail Transportation, Communication, Electric Power
4.Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 20 |
600 / 20 |
|
|
Wire Range AWG |
12-18 |
12-18 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 32 |
1000 / 32 |
1000 / 32 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
4 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
5-6 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
